⚠️⚠️ Note 🌟 OBD2 read the basic sensors like GPS speed, water temp, rpm Volt etc

⚠️⚠️ Oil temperature and oil pressure usually need direct sensors to read. THIS DISPLAY WILL GIVE YOU ALL THAT IS POSSIBLE TO READ. So Not all car can display all the sensors. It depends on your car OBD and sensors. So it's not the product problem. Varies from car to car for the reading n sensor. Please don't buy if u not sure or mind.

READ ✓ ⚠️⚠️⚠️ Note: We do not try every specific reading on every car in this world, data reading is depends on vehicle's ECU. But mostly compatible for all car and will be able to read basic data and I can confirm it can work as video. We do not accept exchange of refund for any specific reason. Example, why my car cannot display oil temp etc

Product Review:

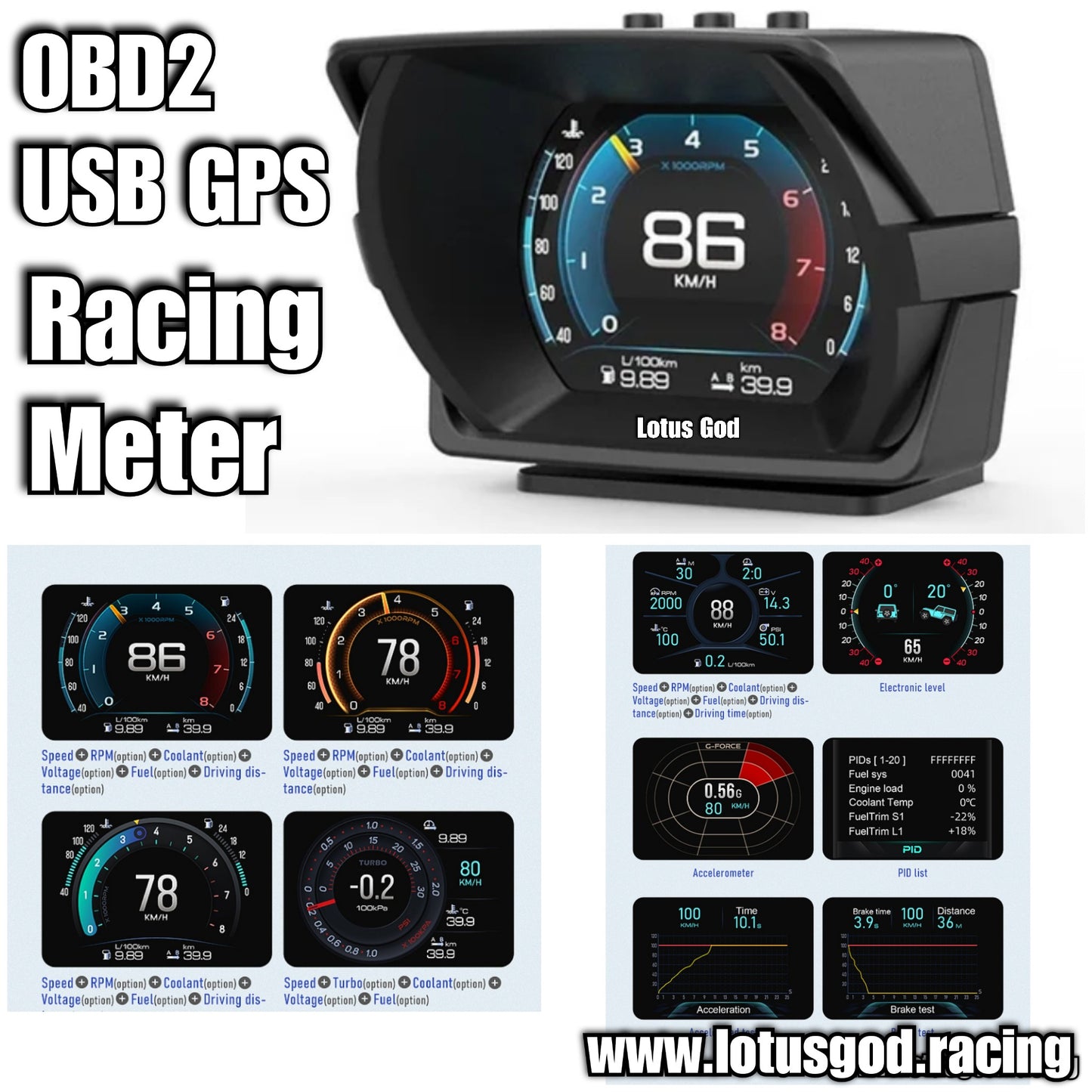

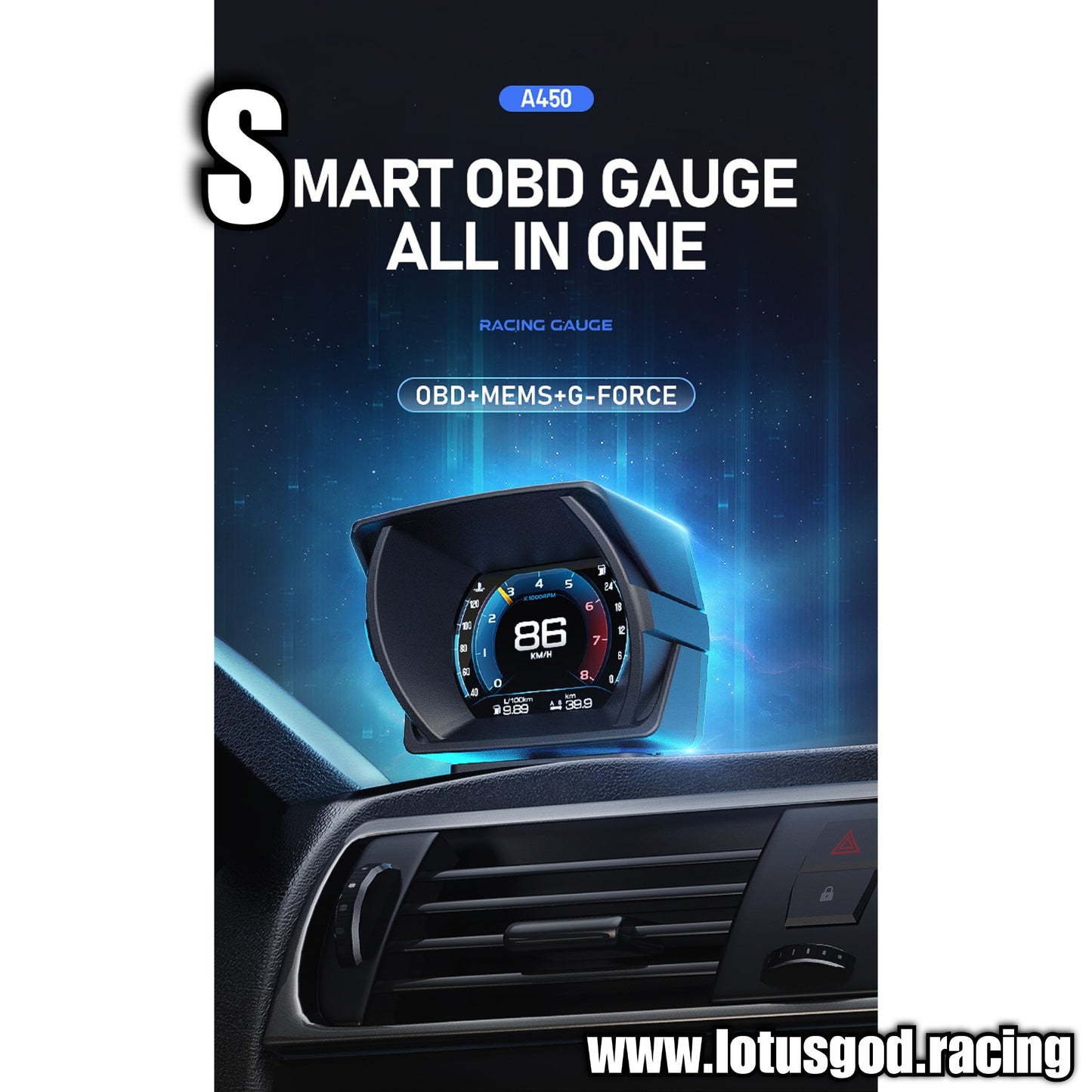

The Smart Car On-board Computer combines OBD2 HUD Gauge Head Up Display+ GPS Digital Speedometer + Off-road slope meter together, which provides a more convenient driving experience for drivers, also widely favored by a large number of racing enthusiasts and lovers

Product Highlights:

1. Plug & Play: Start with the car and turn off with car's engine off.

2. Two installation methods:1) stand on dashboard, 2) upside down on windshield

3. 3 in 1 Smart Car Safety System can work on all cars: OBD & GPS & Inclinometer HUD Gauge

If Your Car's OBD2 Protocol is incompatible, then you can choose GPS working system, GPS mode can work with All Cars;

4. Speed: KM/h & MPH switch freely;

Long press the middle OK button, enter setting page, press right button to System setting, and Press middle OK button again, and then come to Unit Switch, choose KM or Miles as you prefer.

5. Turbo Boost pressure: 100kPa & PSI & BAR switch freely;

6. Fuel consumption units: KM/L and L/100km;

7. The only HUD Gauge on the market to show Transmission temperature, intake air temperature, CVT, coolant temperature; subject to your car Ecu output

8. Modern design and high quality: can connect two sub-machines --- 3 dashboard combined together, driver can see multiple data all the time

9. Display Fuel consumption, fuel temperature, fuel level, etc

10. GPS Precise position: altitude and longitude, compass direction, altitude,date, week and clock, etc

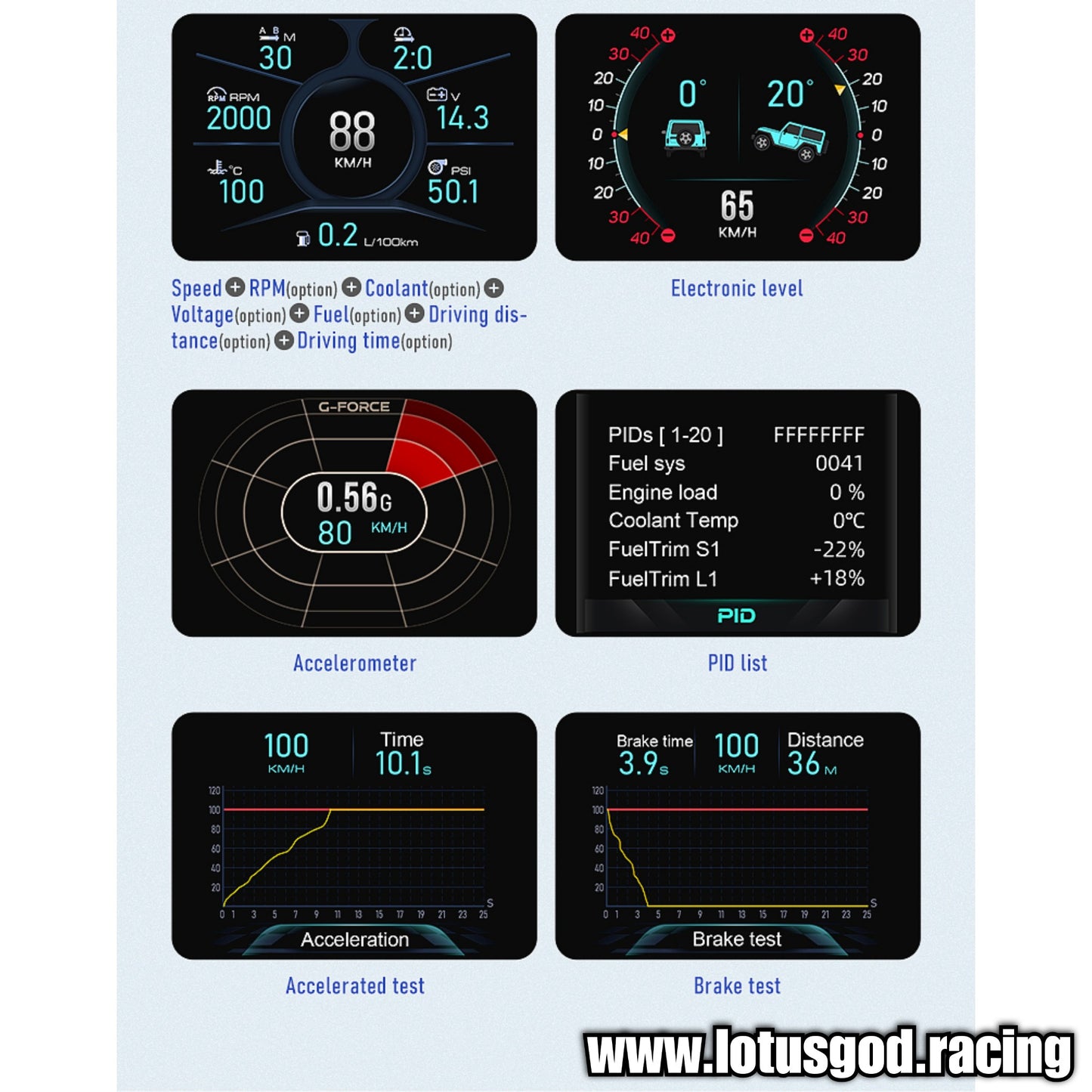

11. 10 Different display interfaces on the main machine + 2 different display interfaces on the sub-machine, you can choose any display interface you prefer.

Product Functions:

OBD & GPS & Inclinometer (Triple Working Systems), Works on All Vehicles.(Diesel, Gasoline, Hybrid, Trucks and Motor cars and so on)

OBD2 mode information display: RPM, speed, Coolant temperature, Oil temperature, ambient temperature, transmission oil temperature, intake air temperature, fuel consumption, fuel level, voltage, single mileage, driving distance, driving time,Clock,turbo boost pressure, oil pressure, air intake pressure, acceleration test, brake test, PID list

GPS mode information display: speed, travel time, date, week, clock, altitude, number of satellites, compass direction, altitude and longitude, single mileage, voltage, acceleration test, brake test...

Slope meter function: Pitch Angle: -40 to 40 degree , Roll Angel: -40 to 40 degree

Multiple Alarms: High Temperature Alarm, Over-speed alarm, High RPM Alarm, Low voltage alarm, Engine Fault Alarm & Clear Faulty Codes,Tilt Angle Danger alarm, Pitch Angle Danger Alarm, Fatigue Driving alarm, etc.

OBD2 OBD2 Multi-function Dashboard + GPS HUD + Inclinometer 3 in 1 Intelligent Car Gauge:

⚠️ Note 🌟 If your car doesn't have obd port or obd2 protocol is not compatible, please go to ''set'' page and off OBD, it will switch into GPS mode. GPS will work on all vehicles.

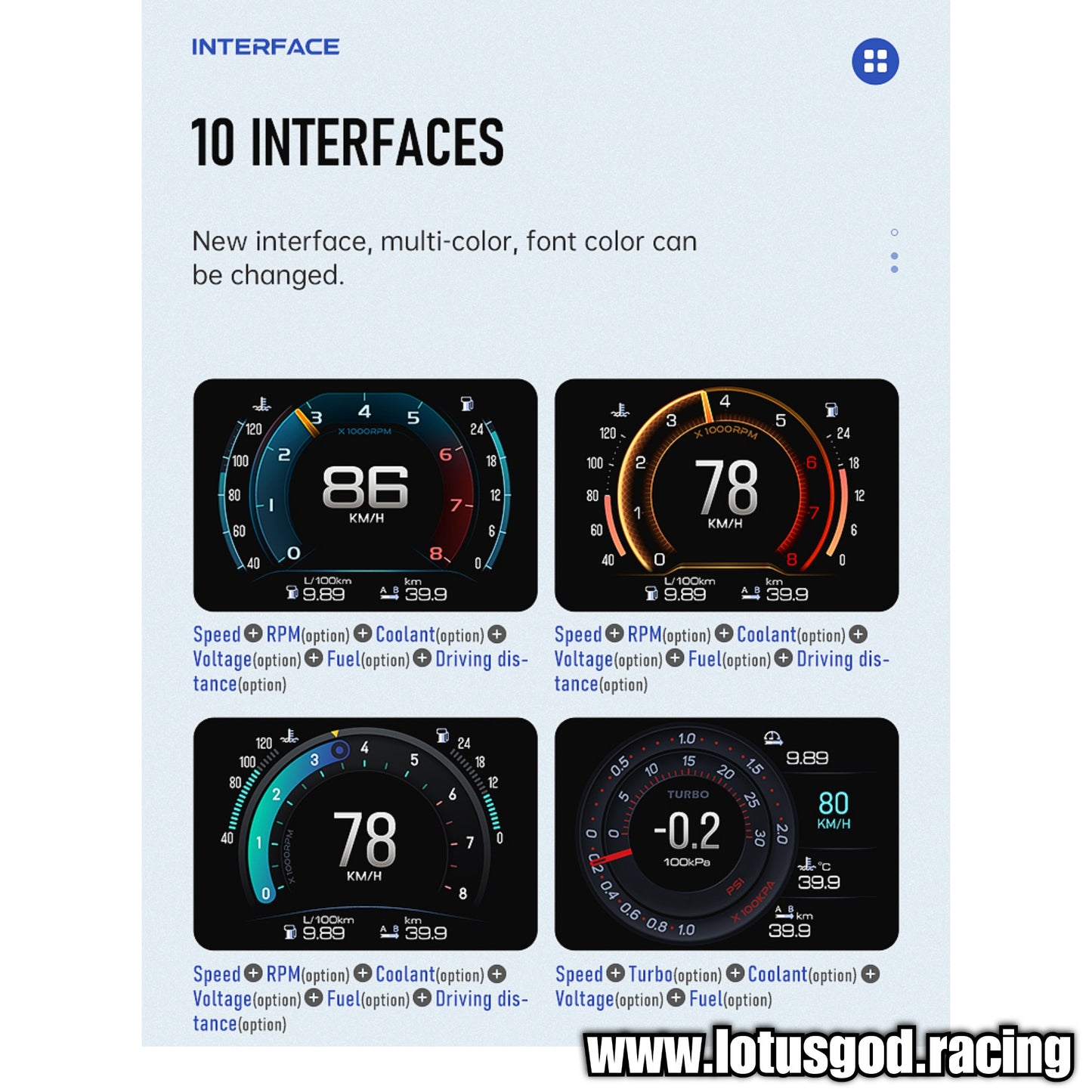

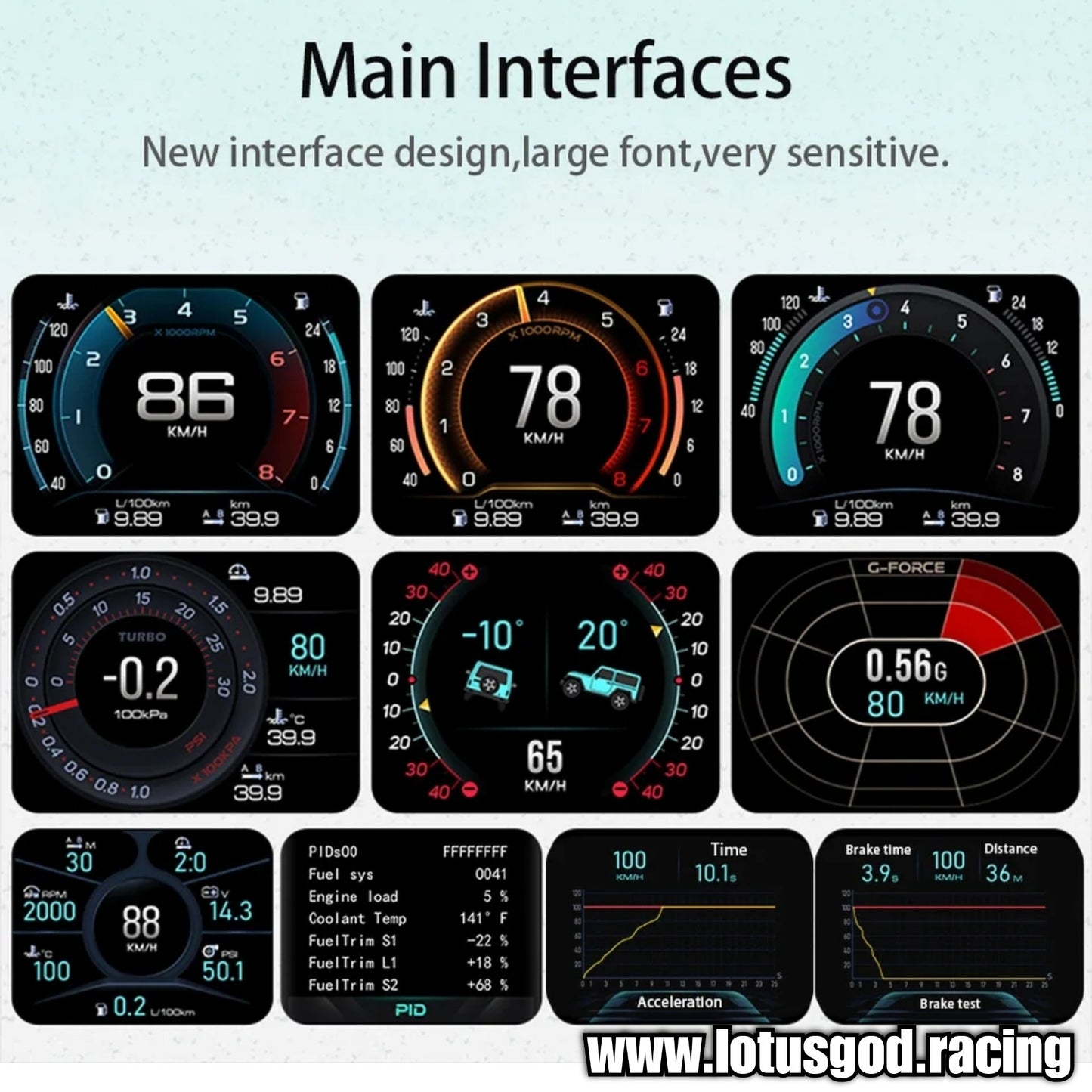

10 Kinds of display interfaces, freely switch, and can add two sub-machines if needed:

This device has built in 10 kinds of interface, just click to the ''OK'' button to choose your favorite interface

Plug & Play: Start with the car and turn off with car's engine off

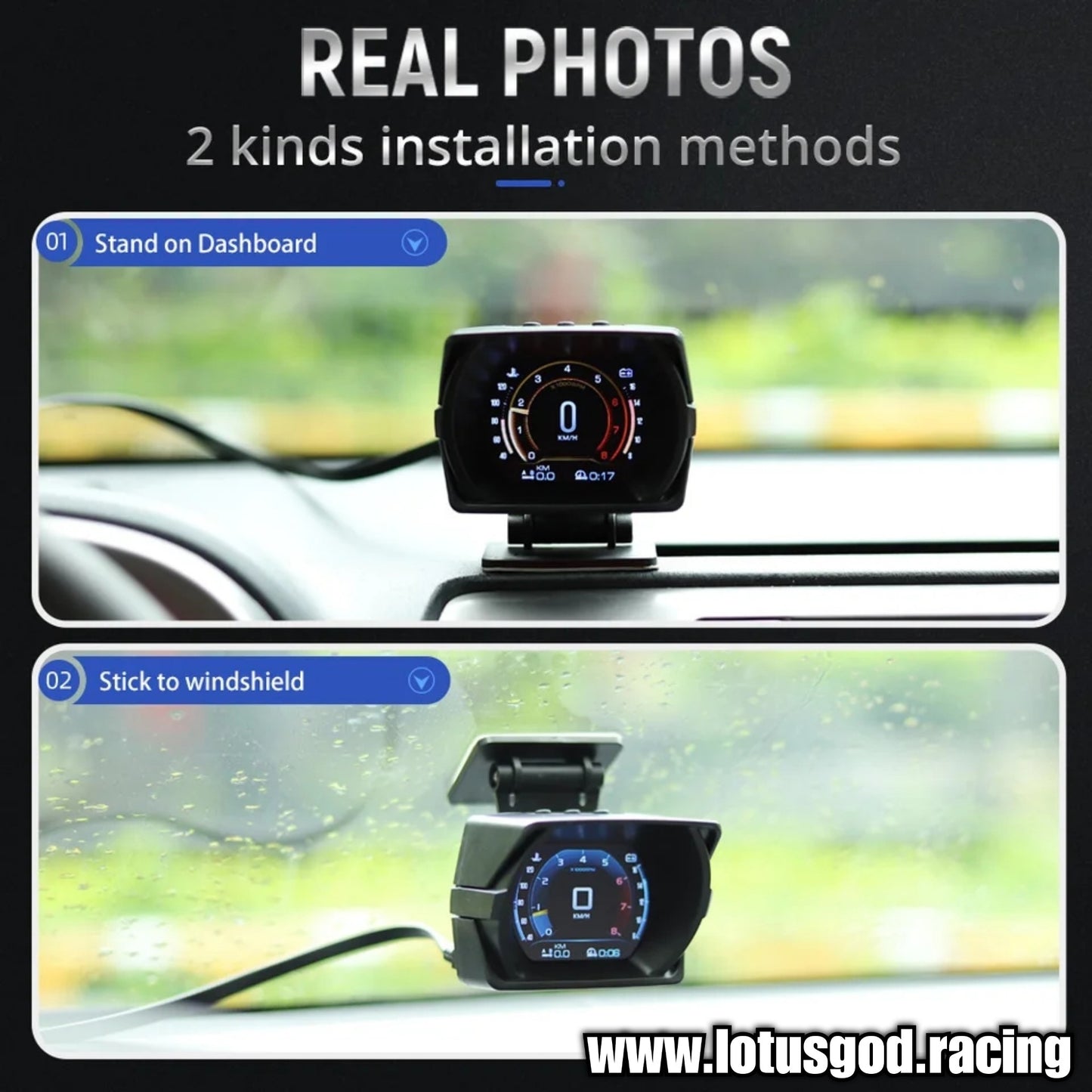

2 Kinds of Install Solution:

Stand on the dash board or Upside-down on the windshield shown as below:

3 in 1 Smart Car Safety System: can work on all cars:

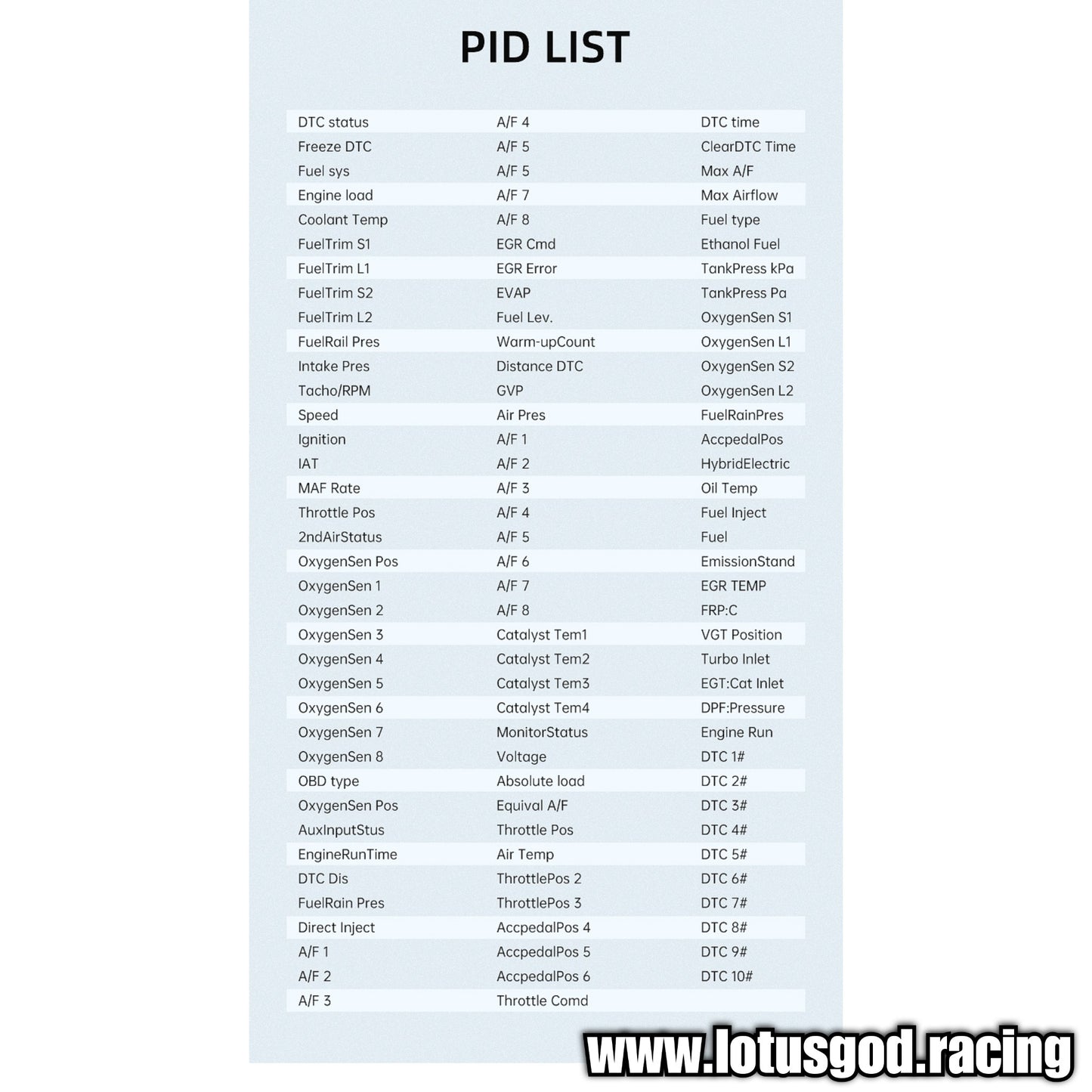

More than 100 data can be displayed + PID List:

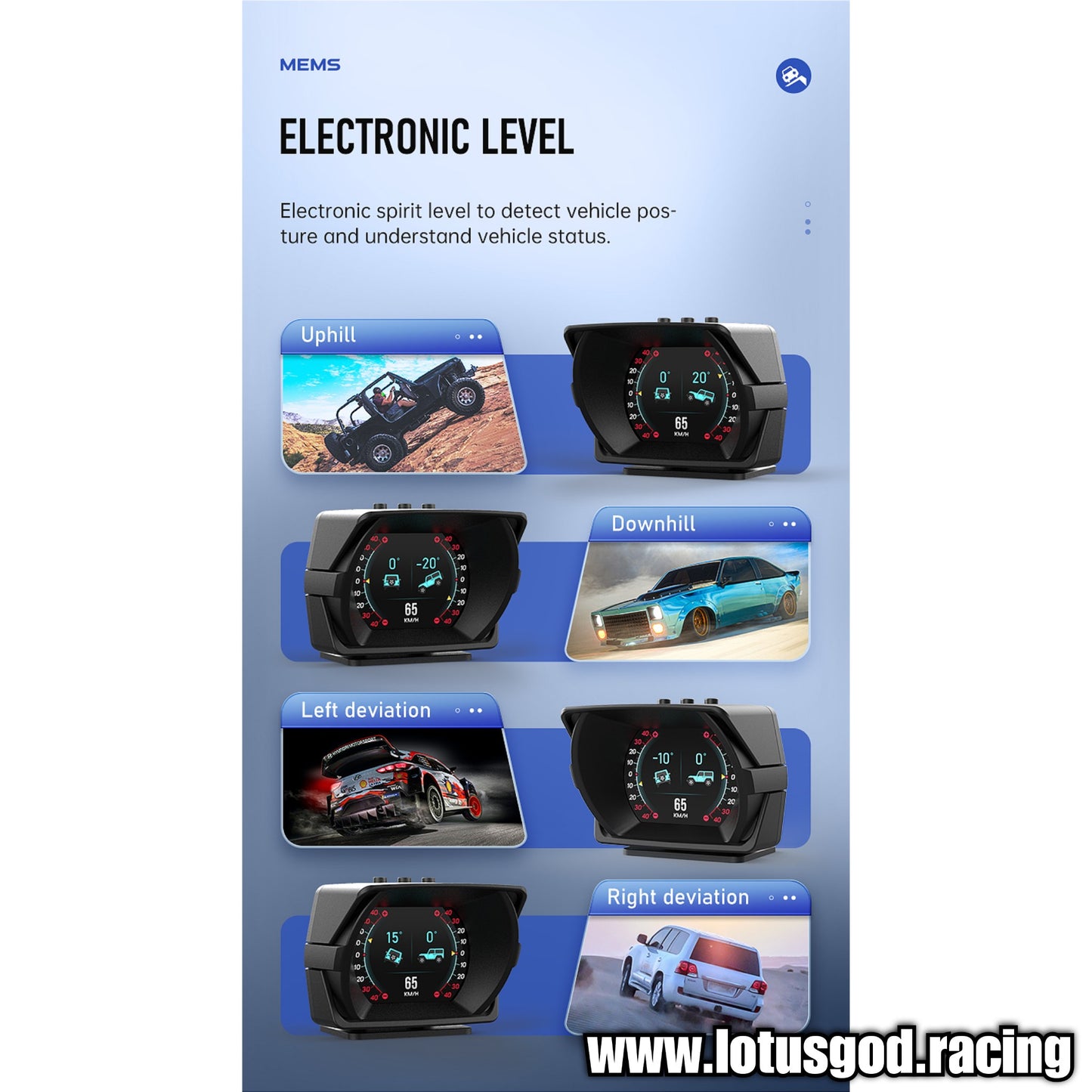

Slope meter / Inclinometerfunction, Pitch Angle: -40 to 40 degree, Roll Angel: -40 to 40 degree:

Real-time measurement of vehicle rolling angle and pitch angle. Accurately display the downhill/uphill and left/right inclination value and equipped with over-slope alarm

100+ Data can be displayed as below:

Product Parameters:

Can match two sub-machines to the maximum units

Material: ABS

Colour: Black

System: OBD2 + USB GPS dual mode

Ambient temperature: -40°C -80°C

Atmospheric pressure 86-106kPa

Relative humidity: 10%-95%

Environmental noise ≤60dB(A)

Alarm level: ≥30dB(A)

Working voltage: 11~18VDC (12VDC/200mA)

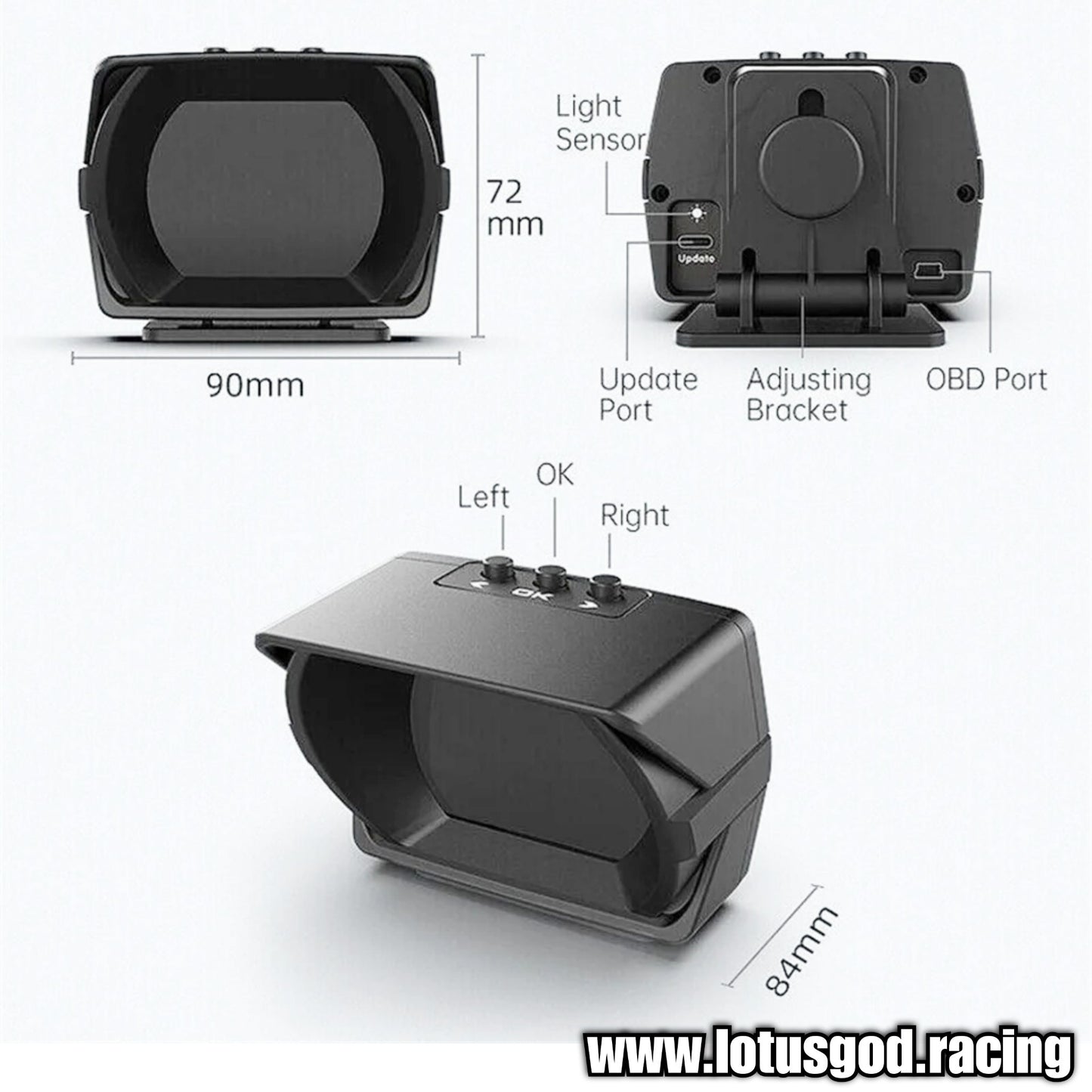

Product size: 107mm X 80mm X 76mm (L*W*H)

Applicable models: suitable for all cars with obd II

OBD cable plug and play, start safety driving with a lot of fun

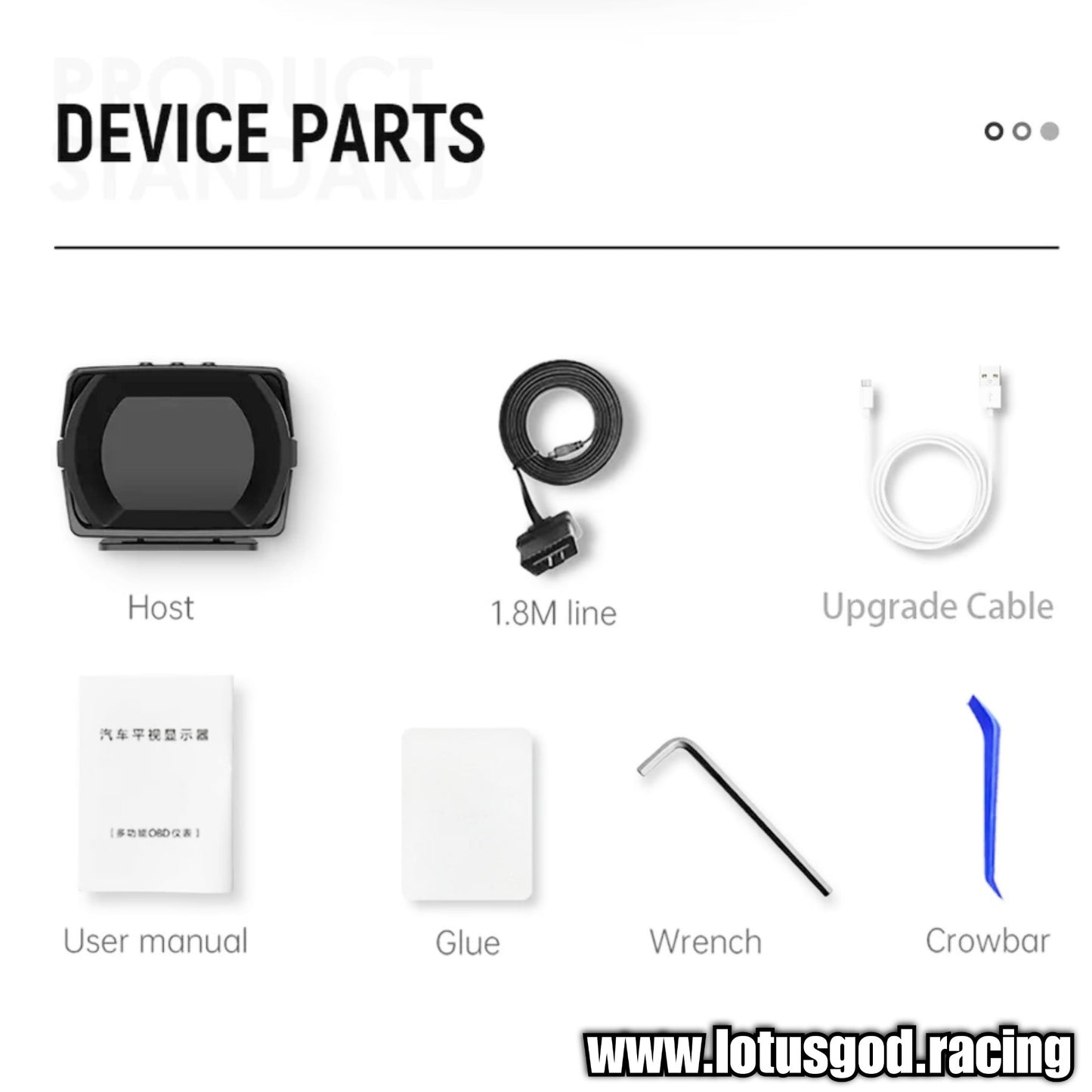

Package Includes :

1 X New Smart HUD Gauge A450

1 X New OBD Connecting Cable

1 X New Velcro Sticker

1 X New Operating Instruction
