Obd2 Head Up Display HUD GPS Auto VSD Smart Car On Board Computer Gauge Speed Alarm Water Temperature Rpm Turbo Boost Meter

Obd2 Head Up Display HUD GPS Auto VSD Smart Car On Board Computer Gauge Speed Alarm Water Temperature Rpm Turbo Boost Obd Meter



⚠️ Note 🌟 To better understand this product, reference the last picture on our website for a video demonstration



⚠️⚠️ Note 🌟 OBD2 read the basic sensors like GPS speed, water temp, rpm Volt etc. ⚠️⚠️Oil temperature and oil pressure usually need direct sensors to read. THIS DISPLAY WILL GIVE YOU ALL THAT IS POSSIBLE TO READ. So Not all car can display all the sensors. It depends on your car OBD and sensors. So it's not the product problem. Varies from car to car for the reading n sensor. Please don't buy if u not sure or mind.



READ ✓ ⚠️⚠️⚠️ Note: We do not try every specific reading on every car in this world, data reading is depends on vehicle's ECU. But mostly compatible for all car and will be able to read basic data and I can confirm it can work as video. We do not accept exchange of refund for any specific reason. Example, why my car cannot display Oil temp turbo etc



According to OBD or EUOBD,( the on-board auto-matic diagnosis system) plug and play.

This plug and play OBD2 gauge is the perfect all in one digital gauge for and OBD2 vehicle!

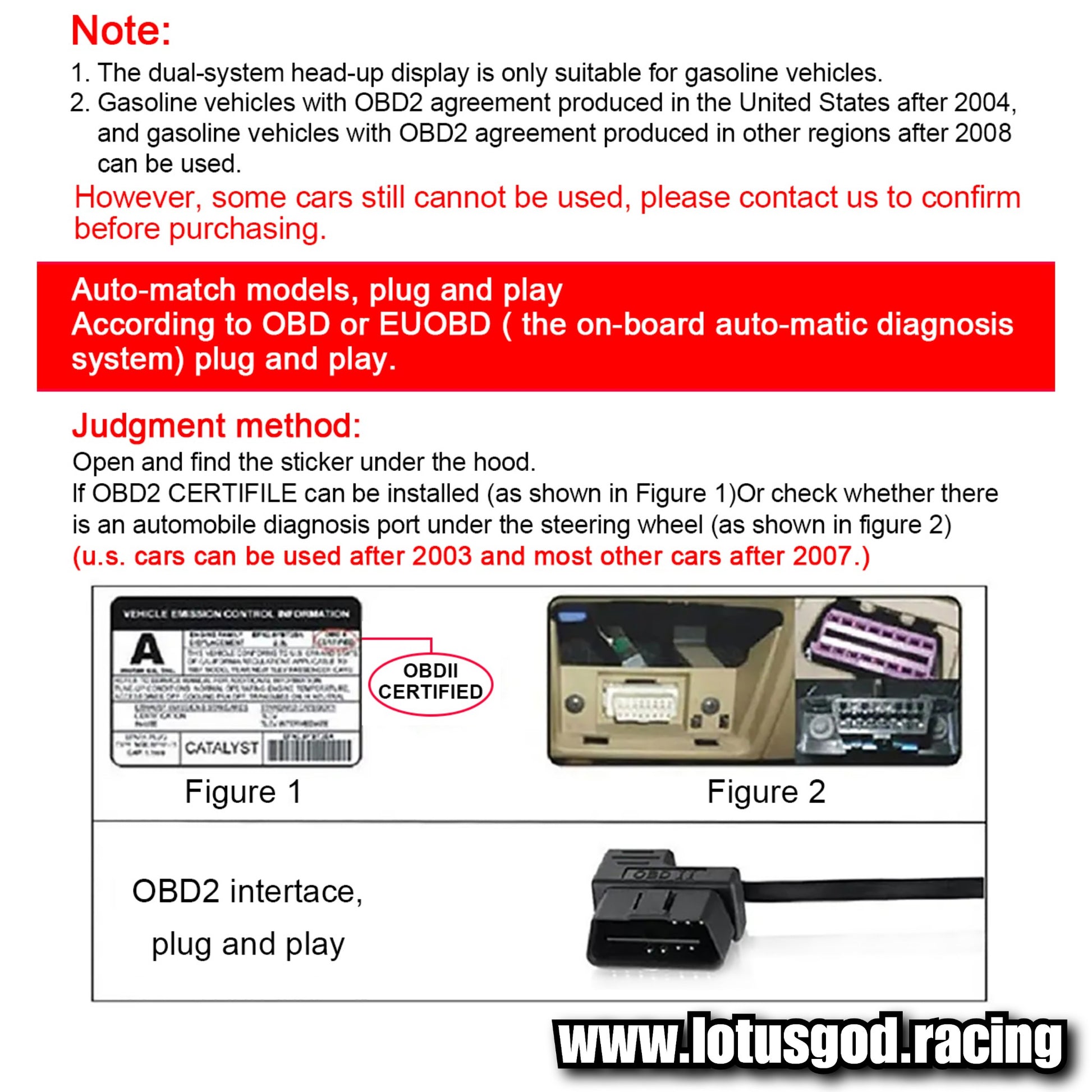

- Judgment method:

Open and find the sticker under the hood.

lf OBD2 CERTIFILE can be installed (as shown in Figure 1)Or check whether there is an automobile diagnosis port under the steering wheel (as shown in figure 2)

(u.s. cars can be used after 2003 and most other cars after 2007.)



⚠️ Note 🌟

1. The dual-system head-up display is only suitable for gasoline vehicles.

2. Gasoline vehicles with OBD2 agreement produced in the United States after 2004, and gasoline vehicles with OBD2 agreement produced in other regions after 2008 can be used.



However, some cars still cannot be used, please make sure your car ha e the obd2 plug n newer model from 2008



All diesel cars do not show OBD function, and some gasoline cars do not show it, such as for Renault, for Peugeot, for Suzuki and other car series. If the model is incompatible with the product due to self-purchase, you will have to bear the after-sale problem, Thank you for your understanding and support



OBD smart digital meter:

This product connects car OBD2 interface by OBD cable, and display the driving datas, e.g. vehicle speed, engine RPM, water temperature, fuel consumption,voltage etc. It can keep the driver’s eyes always on road to avoid the dangerous of lowering down head to read the dashboard. This product won’t change any car ECU datas

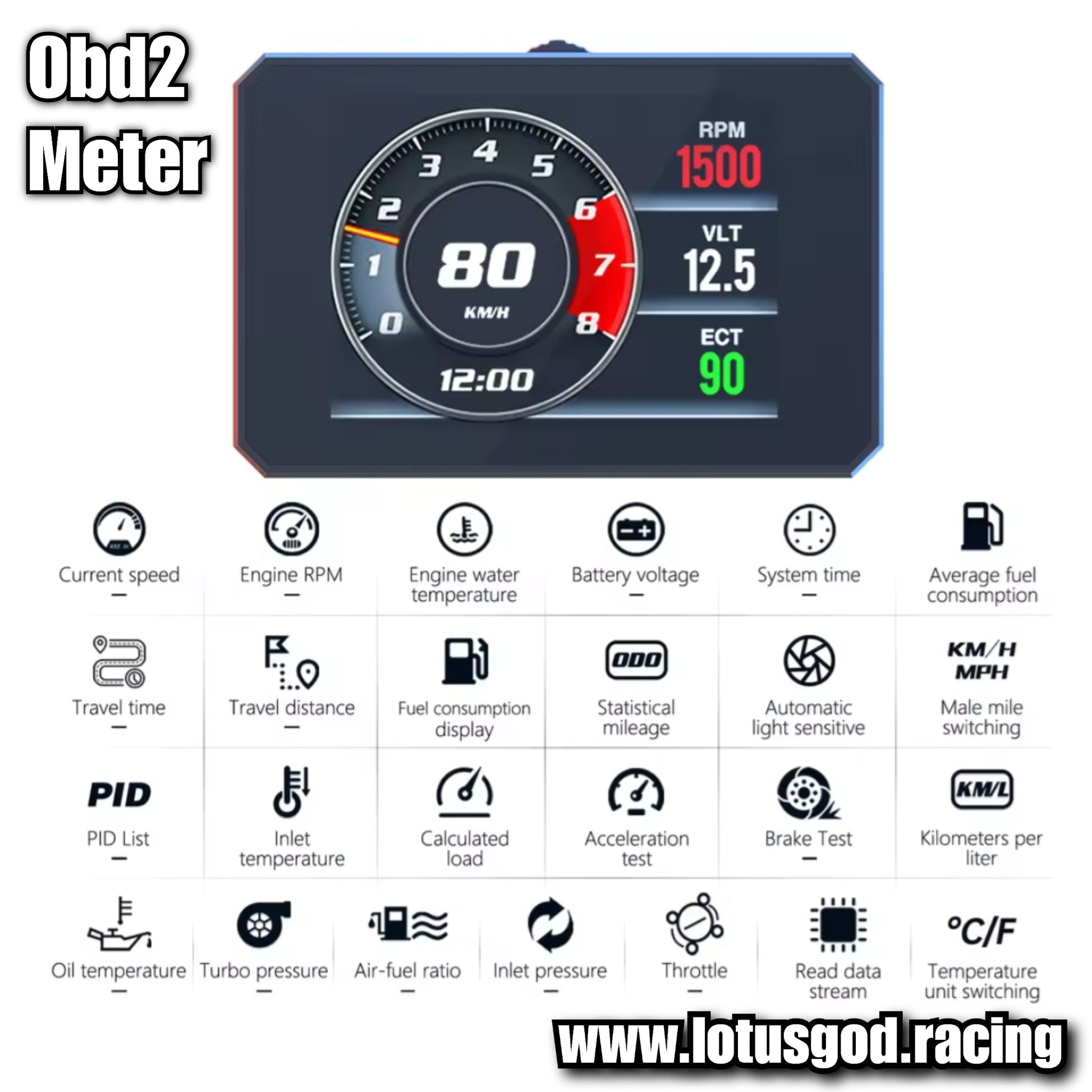

Main Functions & Features:

1. Work for OBD2 protocol cars,easy installation,plug & play

2. TFT LCD multi color smart display

3. The language can be changed(English,Traditional Chinese,Simplified Chinese)

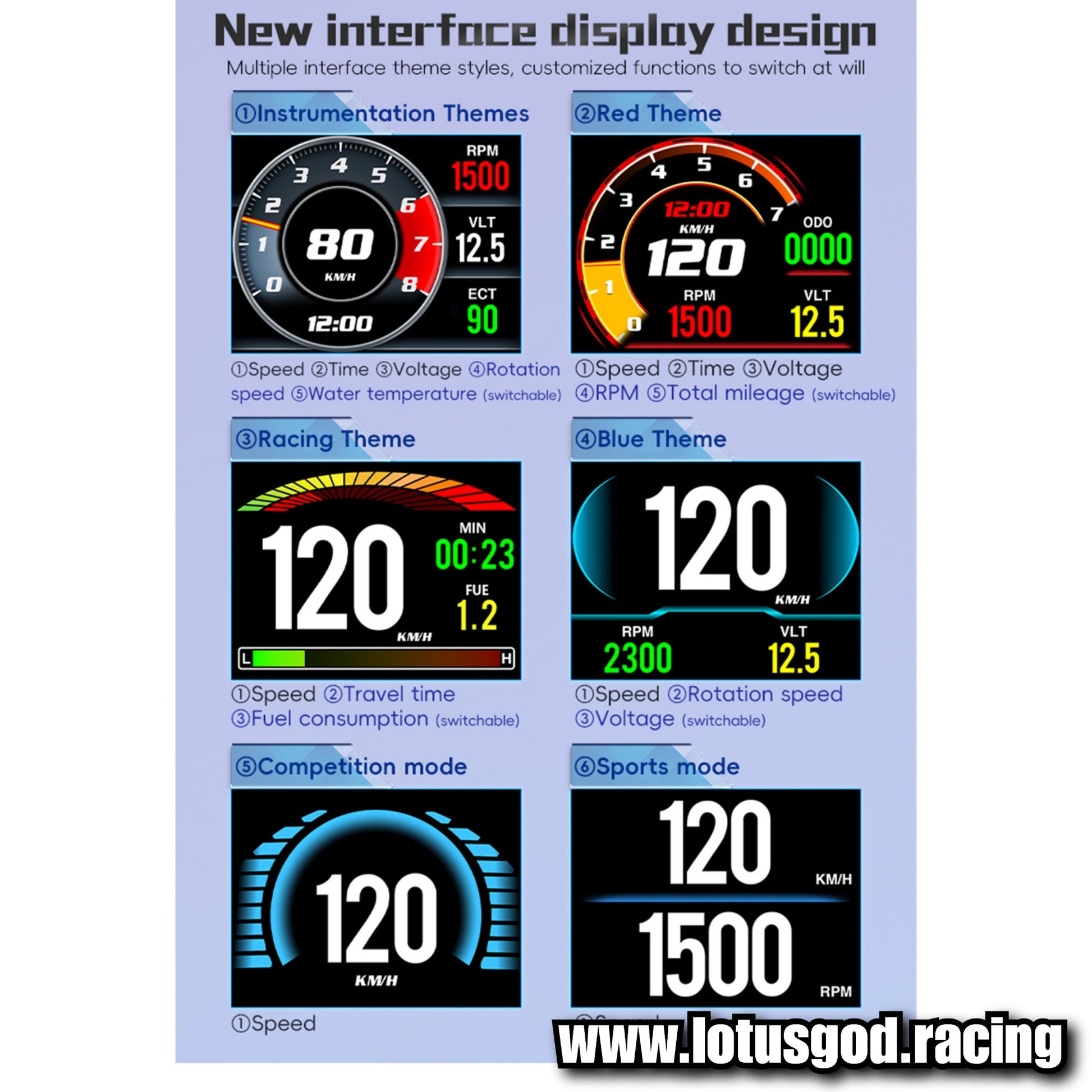

4. Multi / Simple function display mode can be switched

5. Add new functions: accelerating competitive mode ,Brake performance test

6. Rich Contents:vehicle speed,engine RPM,water temperature,voltage,

voltage,instantaneous fuel consumption,average fuel consumption,sum driving distance, single driving distance and time, low voltage alarm,high water temperature alarm,over speed alarm, engine fault code alarm, eliminate the fault code,turbo pressure,oil temperature, air-fuel ratio,freely switch between kilometers&miles.

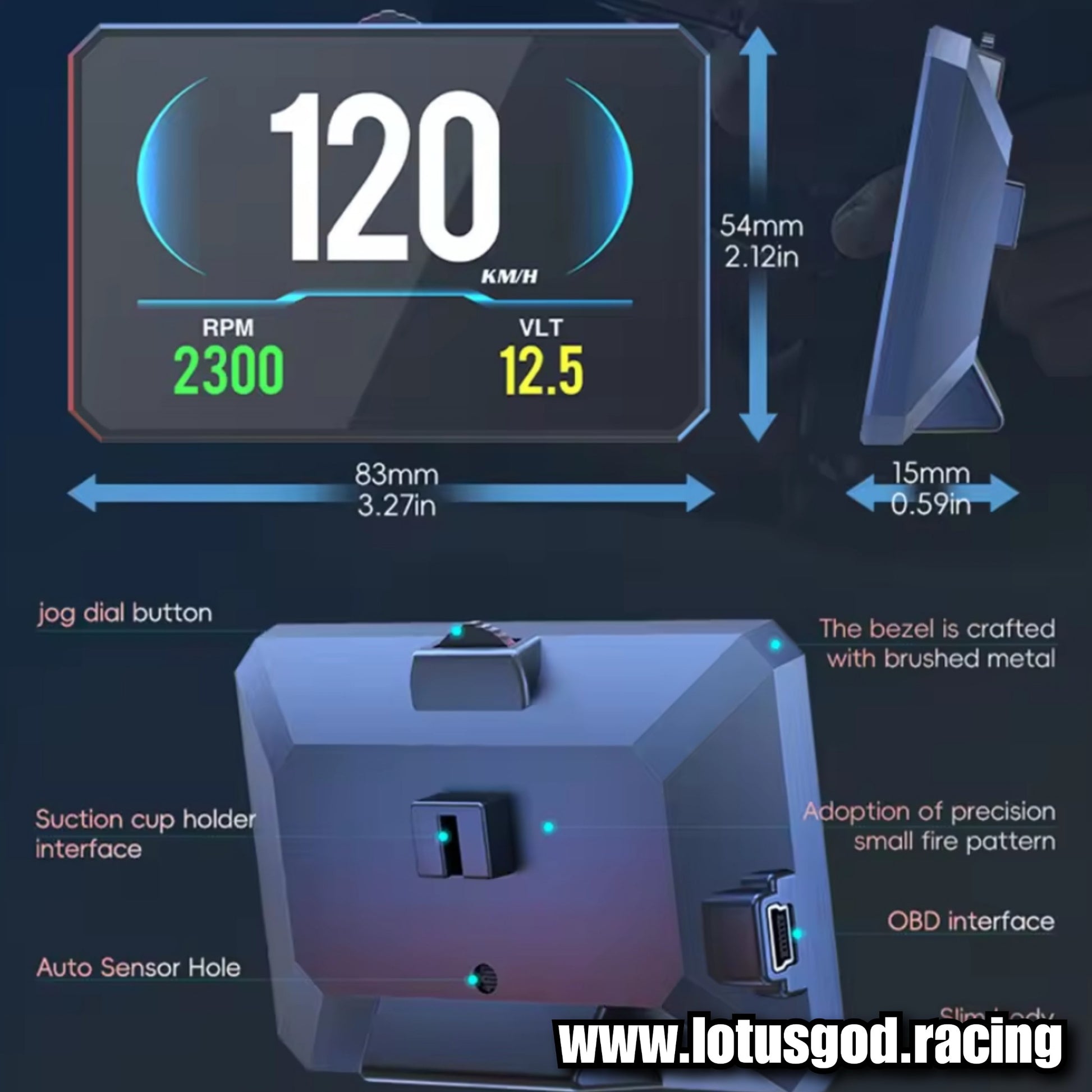

Key functions:

1. Setting button:it can push left / right, short / long press in

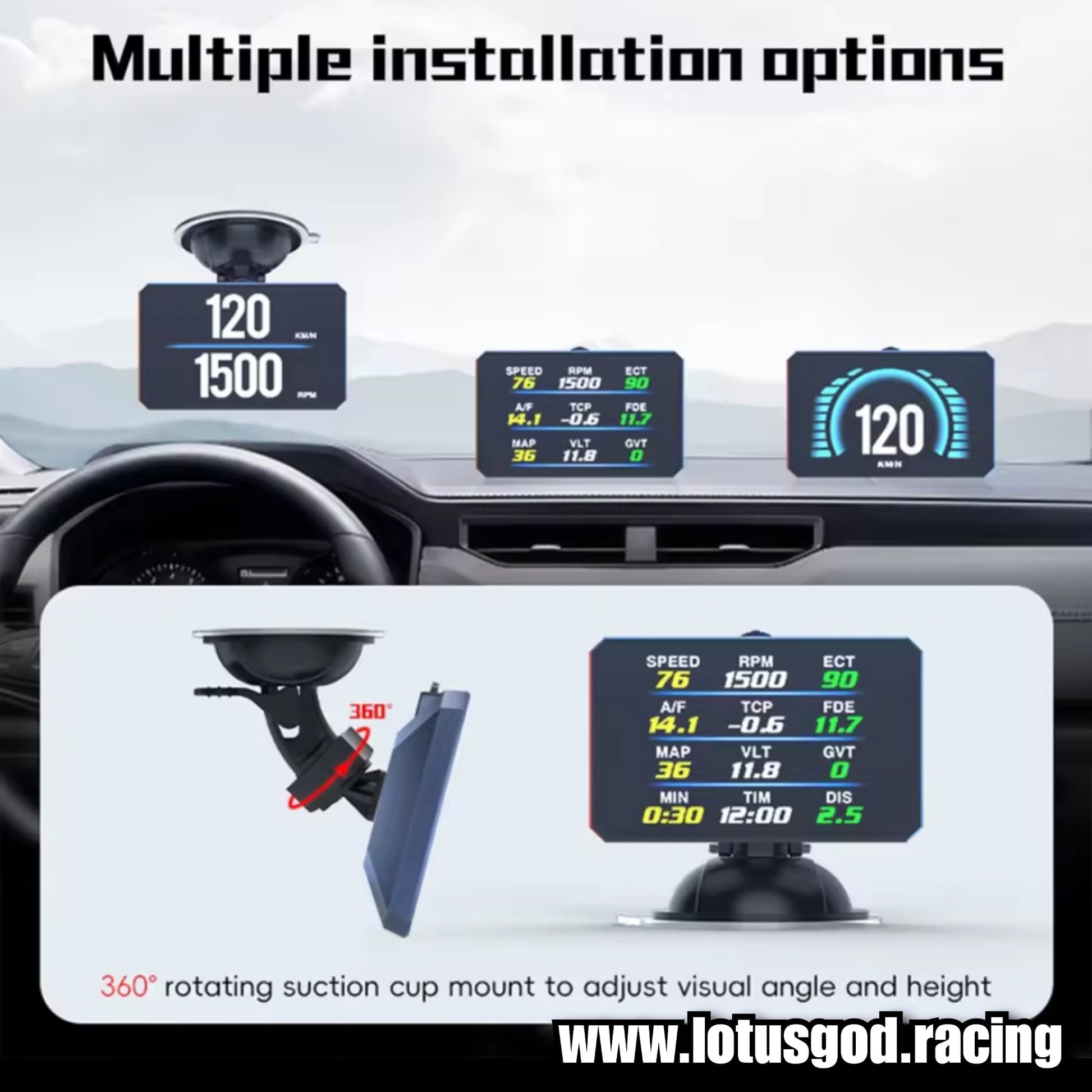

2. Suction cup mount place

3. OBD2 interface

4. Light sensor

5. Host mount



Button settings:

1. Short press in:(1) switch the display mode (2)confirm the menu after enter into the menu

2. Push left:(1)switch the left area functions(2)change the function setting after enter into the menu

3. Push right:(1)switch the right area functions(2)change the function setting after enter into the menu

4. Long press in: after enter into the menu and finish the setting, long press in for 5 seconds to keep and exit



Push left/right to switch function:

Below are function abbreviations

ECT -engine coolant temperature

VLT -Voltage

FUE -fuel consumption

RPM- Revolutions Per minute

ODO -odometer

TIM-driving time

DIS-driving distance

MAP-Intake pressure

OIT -Oil temperature

 A/F - Air-fuel ratio

TCP -Turbine pressure



Factory set:

Long press in the setting button,push right to switch to the Settings, and then short press in the button to enter into the menu, push right to switch to the factory set, and short press in to keep and exit



Eliminate the fault code:

When the device scan the program successfully,long press in the the button to enter into the setting menu,then push right to switch to the troubleshooting,short press in,then find the eliminate the fault code function,long press in to finish



Setting Mode(Menu mode)

Long press in to enter into the setting mode,push right to choose the menu,and short press in to confirm.Once finishing the setting,long press in to exit



Setting functions:

In the menu(setting) mode,all the default value can be changed,push left is to decrease,push right is to increase

Language Set: Please choose your familiar language(English/Simplified Chinese/Traditional Chinese)

Sound Switch: turn on/off the buzzer

Speed Alarm: the default value is 150 (the default value can be changed,push left is to decrease,push right is to increase)

Coolant alarm: default value is 120°, it means this device will give alarm when Coolant temperature is over 120°

RPM alarm: default value is 6000 r, it means this device will give alarm when RPM over 6000 r

BAT Alarm: default value is 10.5V, it means this device will give alarm when battery voltage is lower than 10.5V

Speed Adjust: adjust the speed according to the dashboard,default value is 107%

Speed Offset: When the vehicle turns off,but the device speed is not 0, then adjust the device Speed Offset value, if the device speed shows 5KM/H, then change the device Speed Offset default value at 5

BAT Adjust:if the battery voltage is different with the vehicle,it can be adjusted.

Engine Size: the default value is 1.6 L, if the fuel consumption is much different with the dashboard,please change it as the Displacement size

Fuel consumption adjust: default value is 100%,it can be adjusted

Change Color 1: the top functions color on the screen

Change Color 2:the left side /middle functions color on the screen

Change Color 3:the right side /bottom functions color on the screen

Brightness: default AUTO(Automatic sensitivity),1-6(the brightness will be increased as the digital added)

CWT Unit : default coolant temperature is °C,also can be changed to ℉

Speed unit: default is KM,can be changed to Mile

Sum distance: can make the total driving distance same as dashboard(if the dashboard shows the sum distance is 30000Km,the user can make the device value at 30000KM)

Power off time: default power off time is 10s,for Auto start and stop cars,please make the power off time to 180-240s

Sleep Voltage: default is off ,if the device can’t auto off,please adjust the voltage at 13.2V or higher

Factory set: short press in to do the factory set

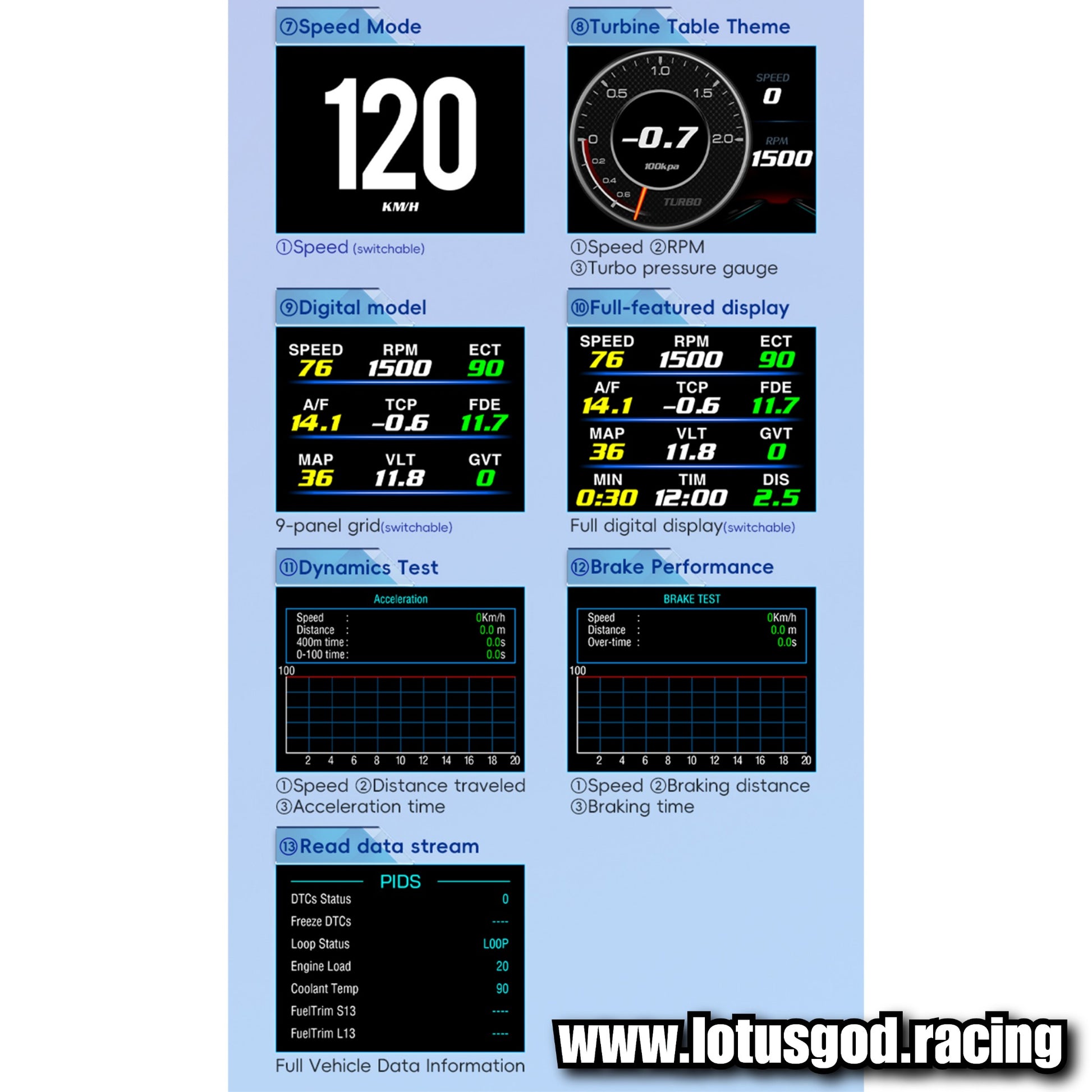

Driving test

Speedup test:show the speed,distance,the time for 400m and the time for 100KM/H

Brake Test:show the speed,brake distance and time



Error code set

Scan DTCs:scan the ECU to check if there is the error code,and show the error details

Clean DTCs:switch to Clean the DTCs,short press in the button to finish the cleaning



Data Stream

Show all the vehicle data stream

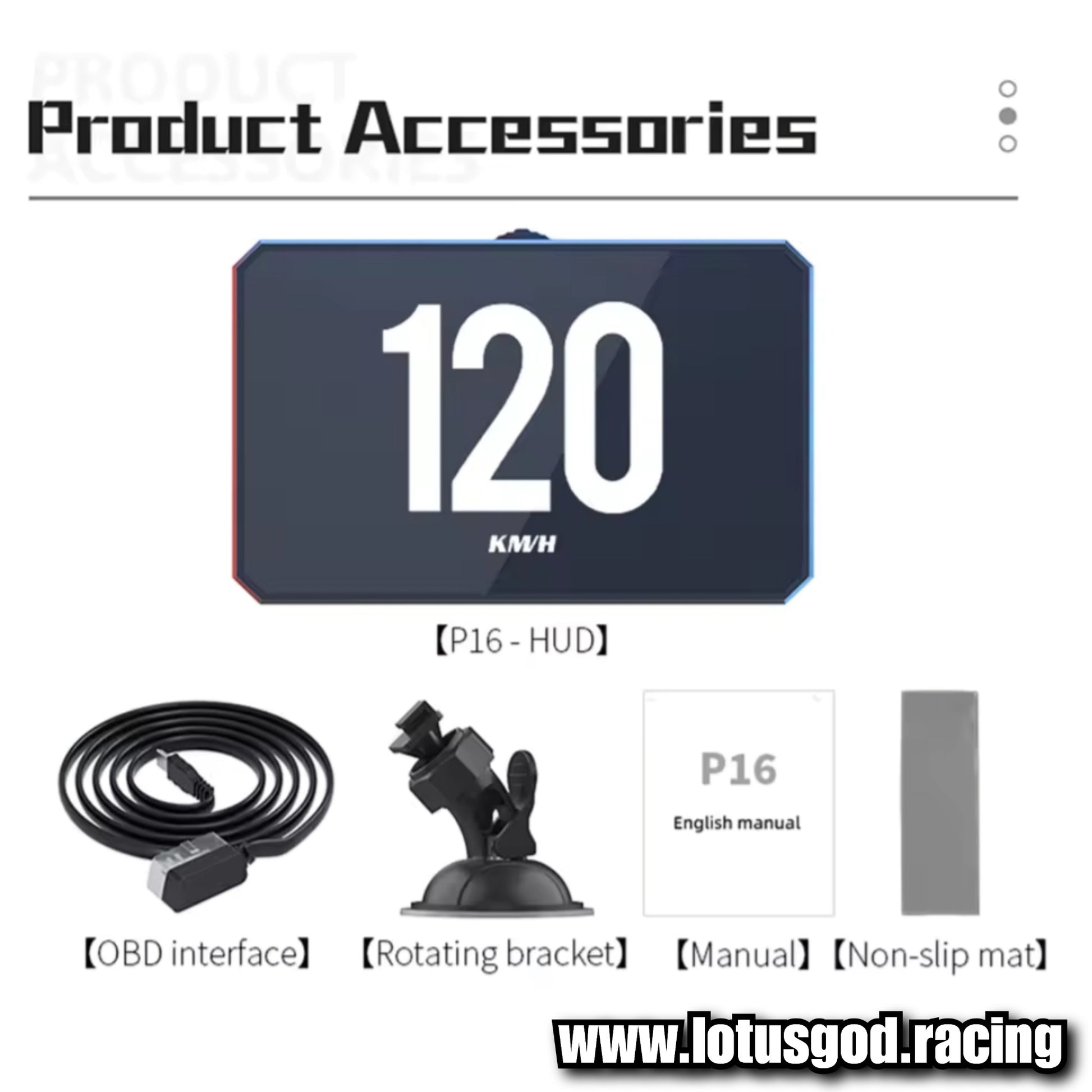

Package Includes :

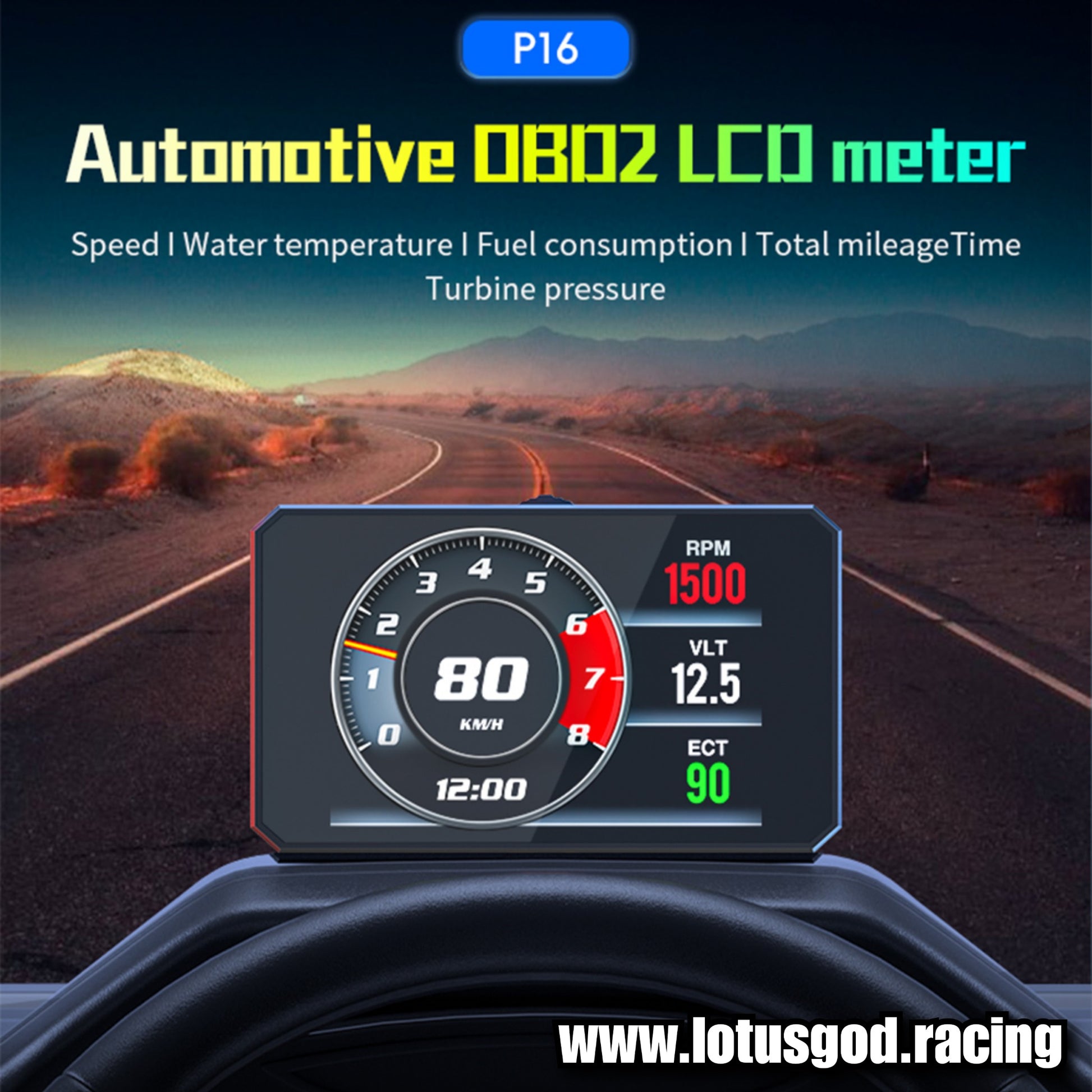

1 X New P16 Head Up Display

1 X New OBD Cable
