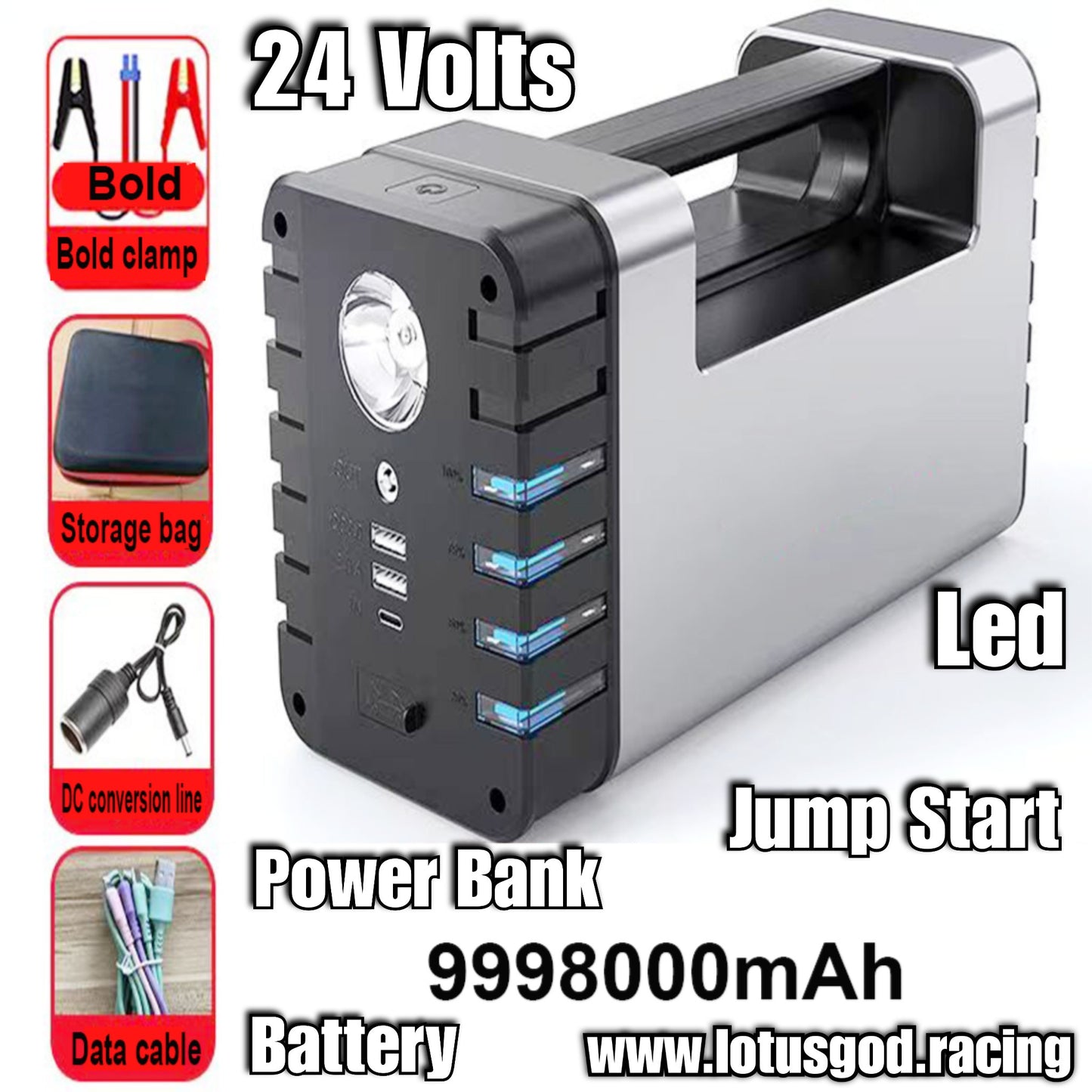

24V 30000mah Powerful 24 Volts Diesel Petrol Heavy Vehicle Crane Bull Dozer Truck Van Lorry Trailer Jump Start + Power Bank + Emergency Led Light Rechargeable Type C Battery Supply Starter

24V 30000mah Powerful 24 Volts Diesel Petrol Heavy Vehicle Crane Bull Dozer Truck Van Lorry Trailer Jump Start + Power Bank + Emergency Led Light Rechargeable Type C Battery Supply Starter



Product design concept :

Visual characteristics of appearance

Strong, beautiful, and modern



Functions :

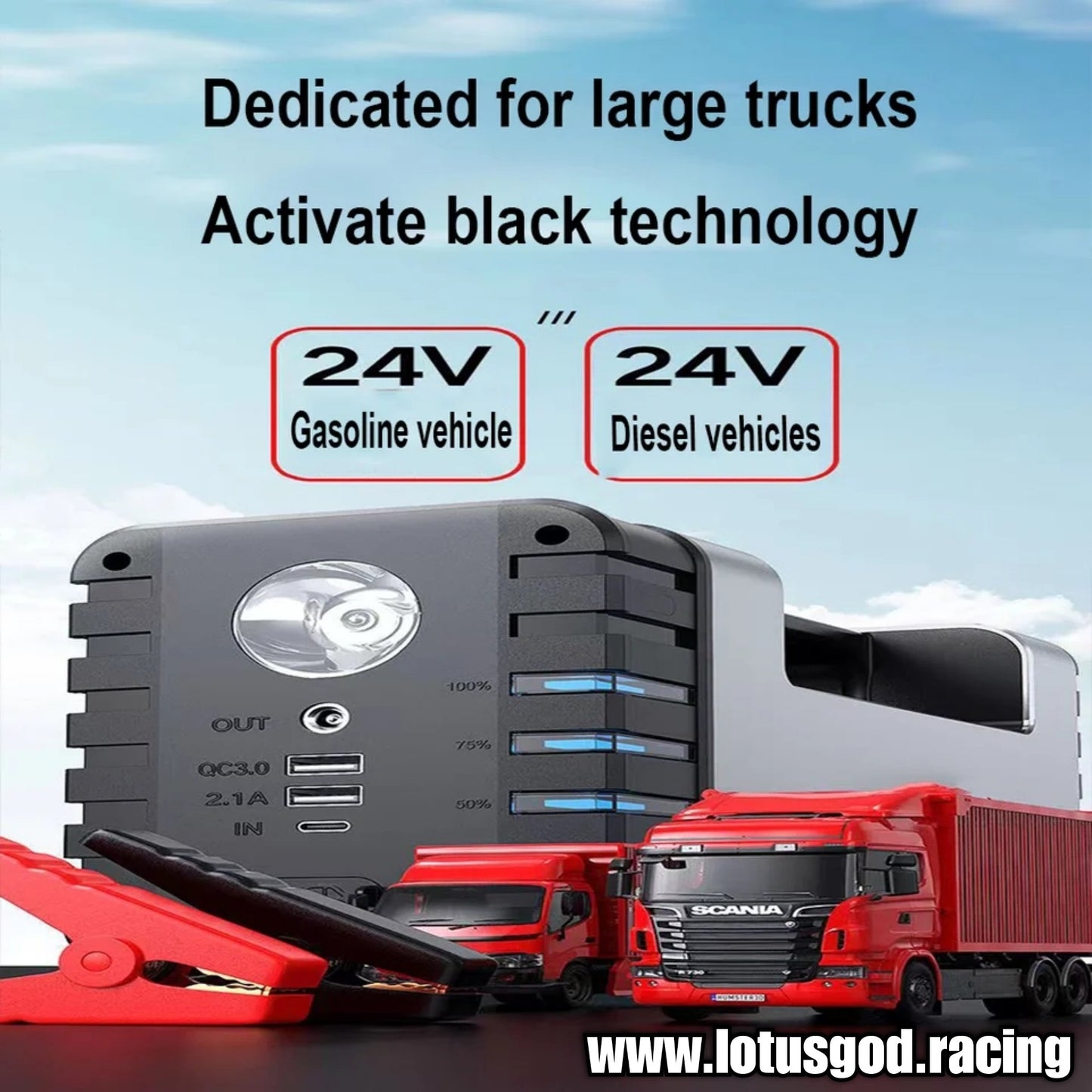

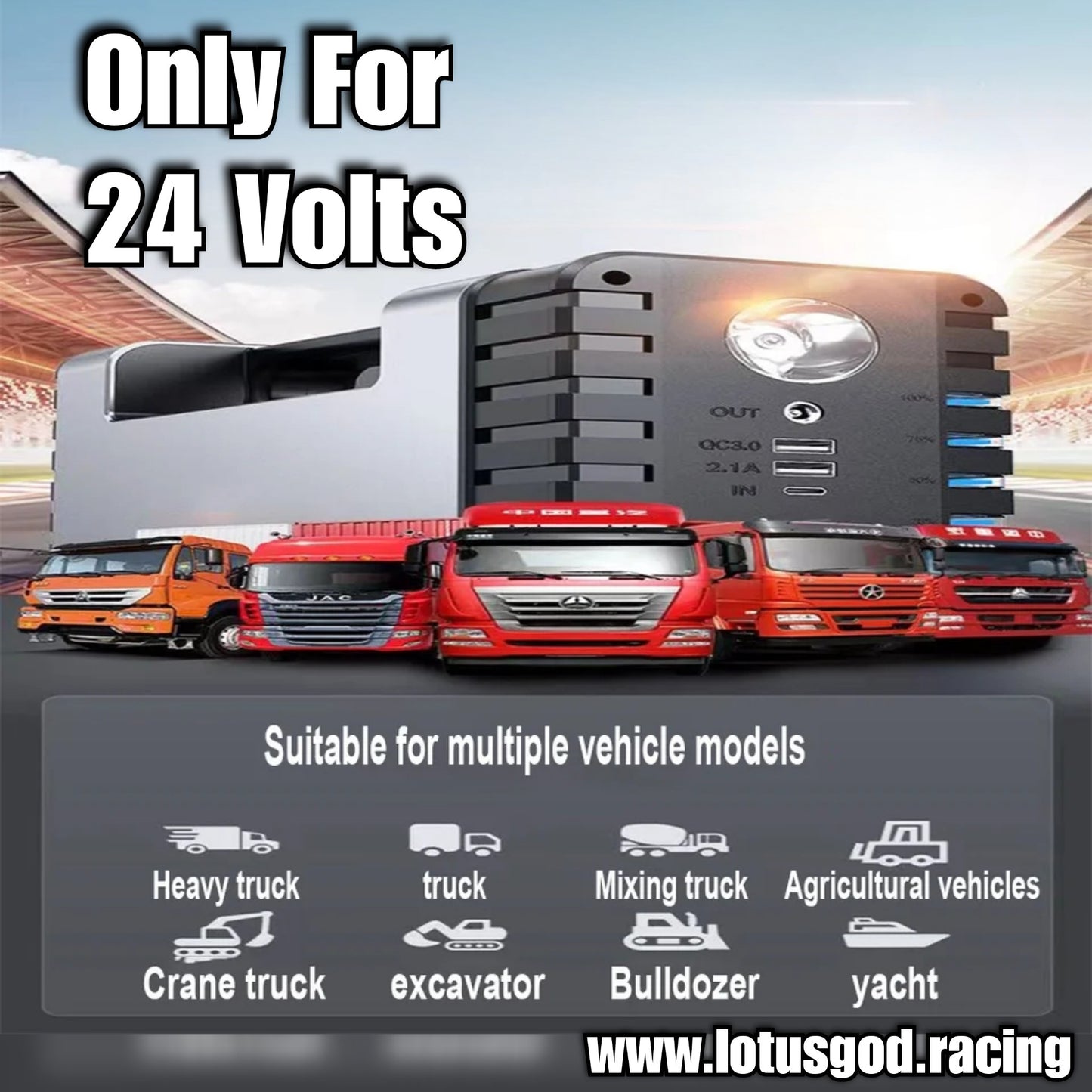

Only for 24V diesel gasoline universal emergency starting power supply

Emergency lighting LED flashlight

Portable power bank, large capacity

24 V startup power supply

30000 mah super high-end version

Real parameter advantages

24V starting power battery: 6 series batteries Independent battery



1. Lastest technology 6 series of high magnification A-grade explosion-proof cells, with real cell capacity and no false labeling. The real products on the market are 6 series cells, and our product confirm has 6 series cells.

2. The product is equipped with 4 relay protection circuits, which provide overcharge, over discharge, and short circuit protection

The product uses mainstream Type-C 30W interface input, and most products on the market use DC interface charging, with a single interface



Product Professional Features :

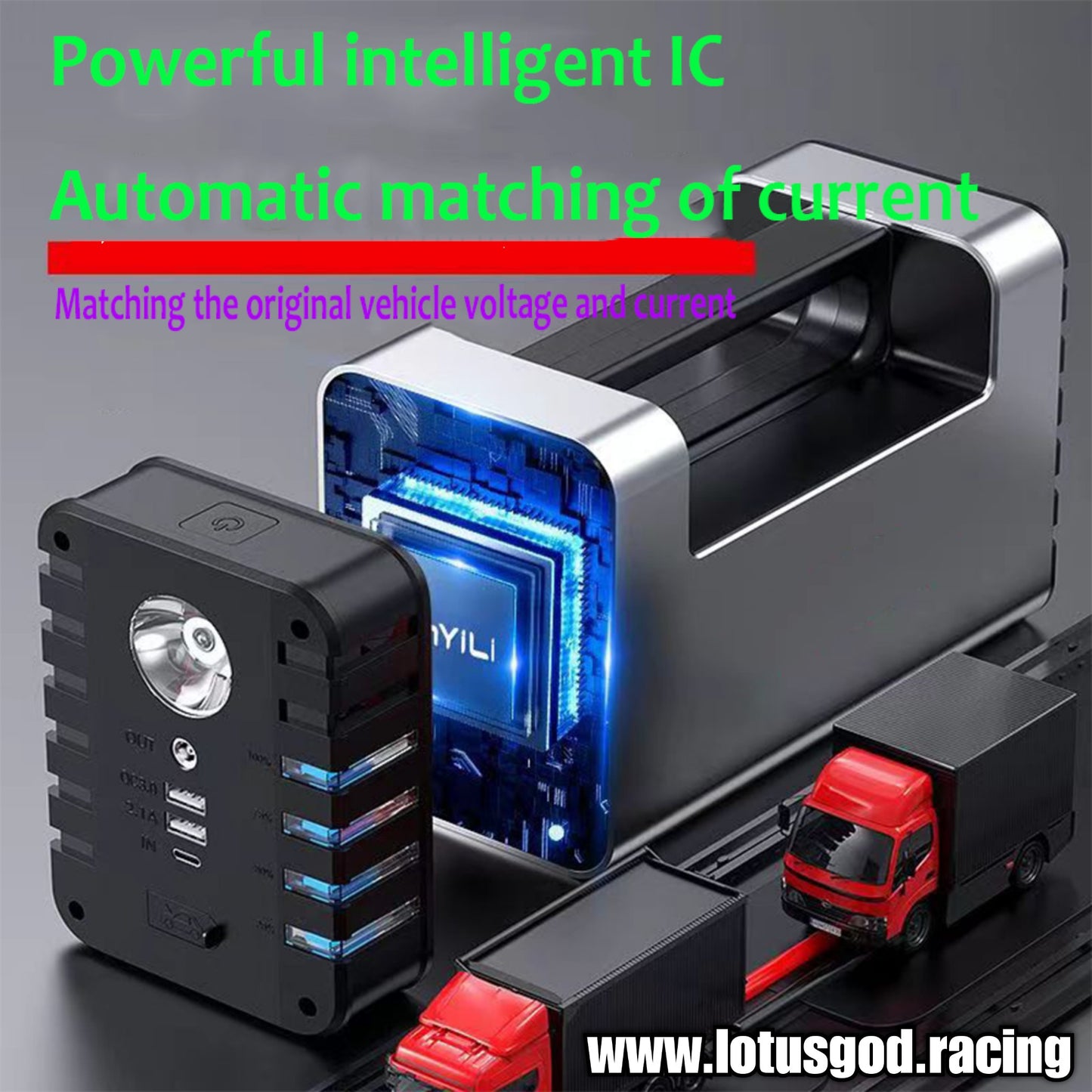

Chip

Main control chip: Zhongwei (CMS32F033QN32) battery voltage regulator chip Yingjixin (IP6536)



Batteries

High magnification A-grade pure ternary polymer cells (6570140/586888)

Battery clamp

EC8 battery clamp

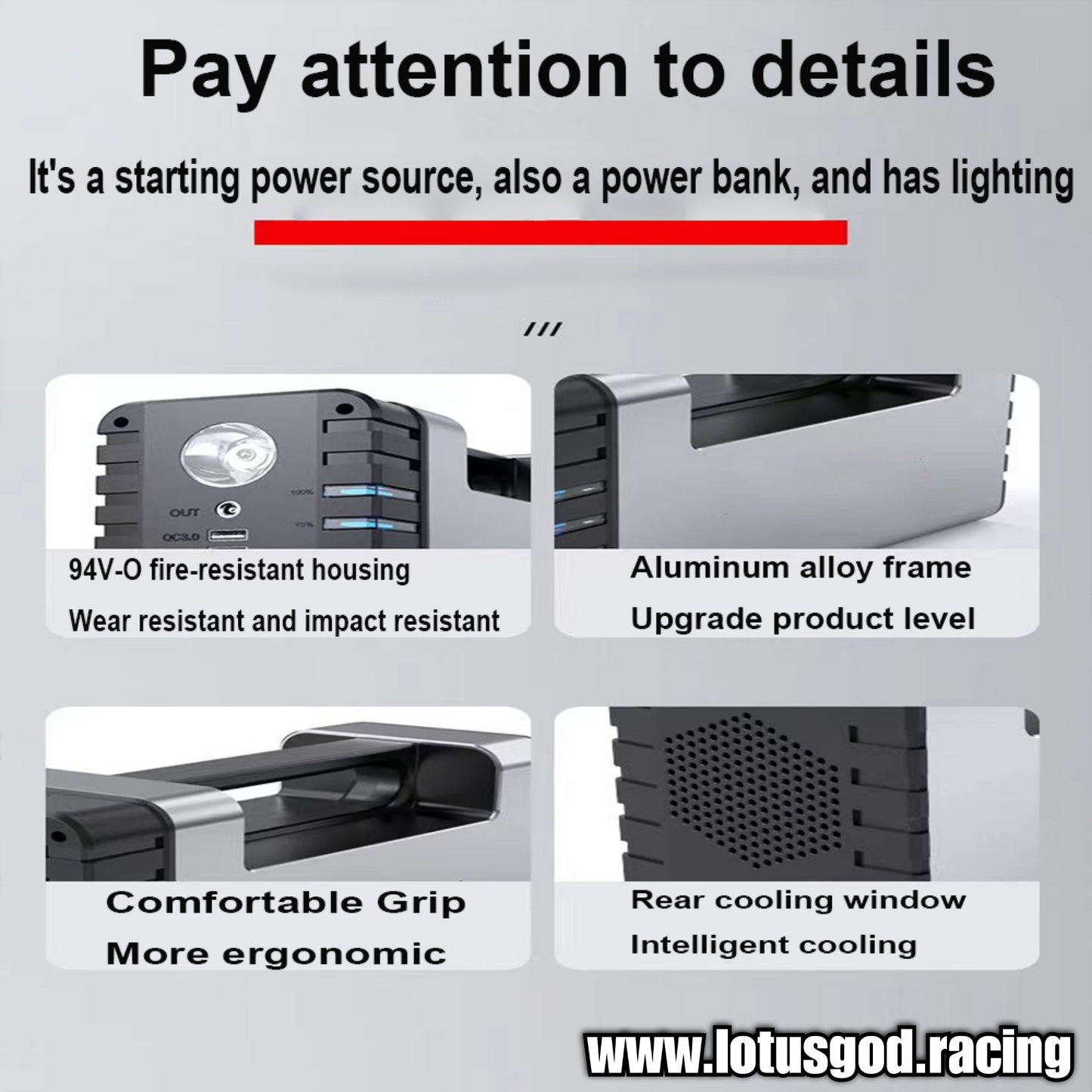

Structural craftsmanship

ABS + PC shell

Upper and lower shells

Material and craftsmanship

Surface sprayed with gray metallic paint, with a matte texture

High magnification A grade poly pure ternary composite battery/Built in overcurrent, overvoltage, anti reverse connection, short circuit protection/LCD large screen, 6 independent battery cells, 24V automotive universal

Rugged and beautiful design elements

High grade and sophisticated gray metallic paint texture



Specifications :

24V LD startup power supply

30000mAh（Grade A类）

Battery capacity

8990000、12980000、17980000、19980000、21980000 (Virtual label Class B)

600A/1500A 900A/1800A

Peak current

3000/4000/5000/8000/9000A

3/10000

(Virtual label)

10w/18w/30w

Charging port power

10w/18w

7-8 hours

Charging duration

8-10 hours

Unlimited displacement

Diesel engine displacement

Unlimited displacement

EC8 large clamp

Battery clamp

Ordinary battery clip or diode battery clip



Instruction steps for starting a 24V car

1. Insert the battery clamp into the 24V starting port

2. Clamp the positive and negative terminals of the battery onto the positive and negative terminals of the car battery, respectively

3. After short pressing the power button and checking the 24V battery level, the red and green lights will flash to ignite. If the red light remains on, it is considered abnormal and not ignitable

When the red and green lights are flashing after a 4 secs, 24V battery level, you can quickly double-click the 24V button. After the green light stays on, the ignition can be started



USB-A and Type-C charging modes

2. Short press the power button to turn on the device, insert the USB port into the load, and the OUT icon on the screen will light up

3. After the Type-C port is connected to the charging cable, the IN icon on the screen flashes during charging, and the fully charged IN remains on

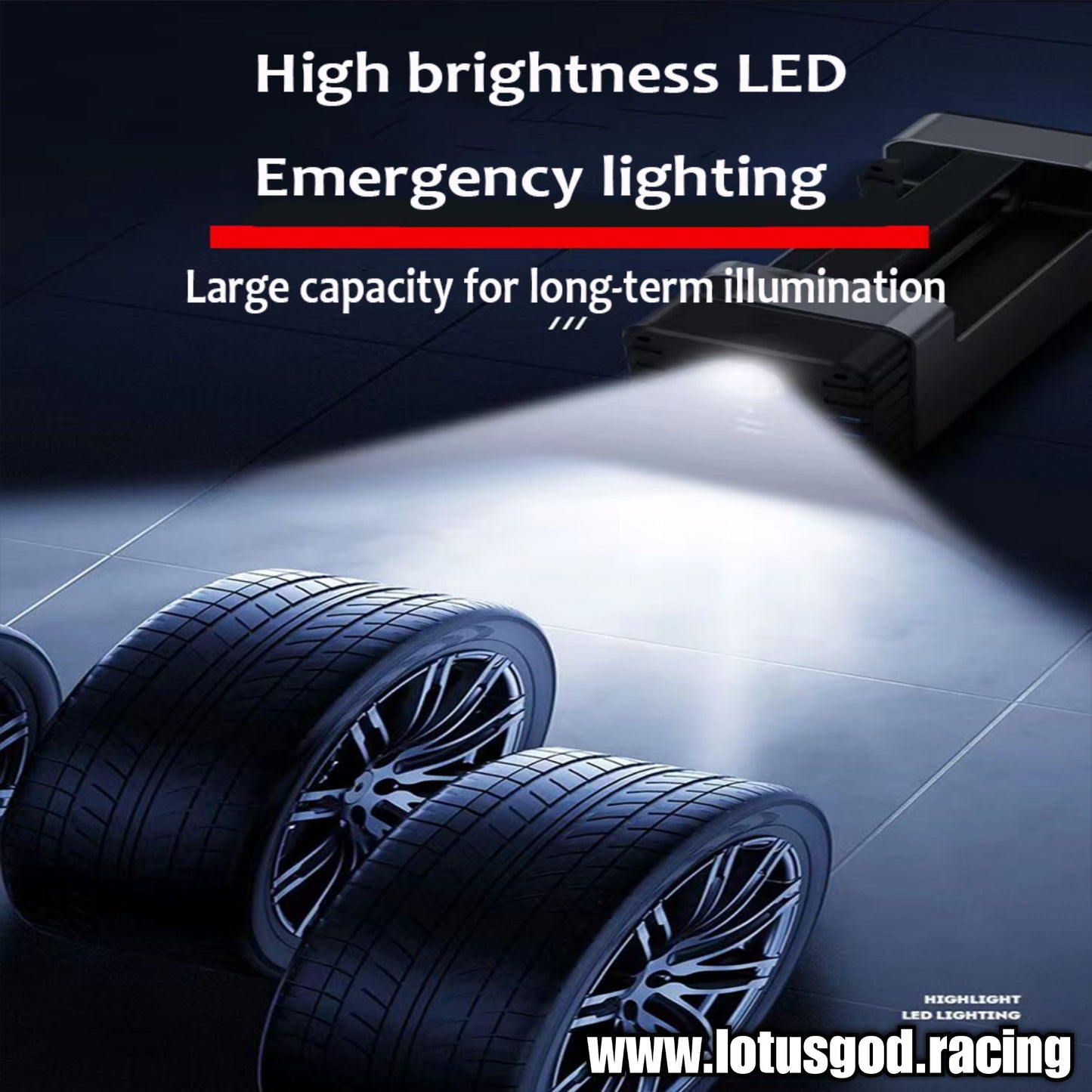

Lighting function

After short pressing the power button to turn on, long press the light button to enter the lighting mode. Short press the light again to switch lighting modes: SOS, flash mode



Product specifications

Product model: LD 24V

Output USB 1: 5V=24A

Output USB2: 5V=2.4A

Input: Type-c 5V=2A; 9V 2A; 12v=1.5A; 20V=1.5A (MAX 30W)

Charging time: approximately 7-8 hours

Product size: approximately 333mm X 214mm X  86.5mm

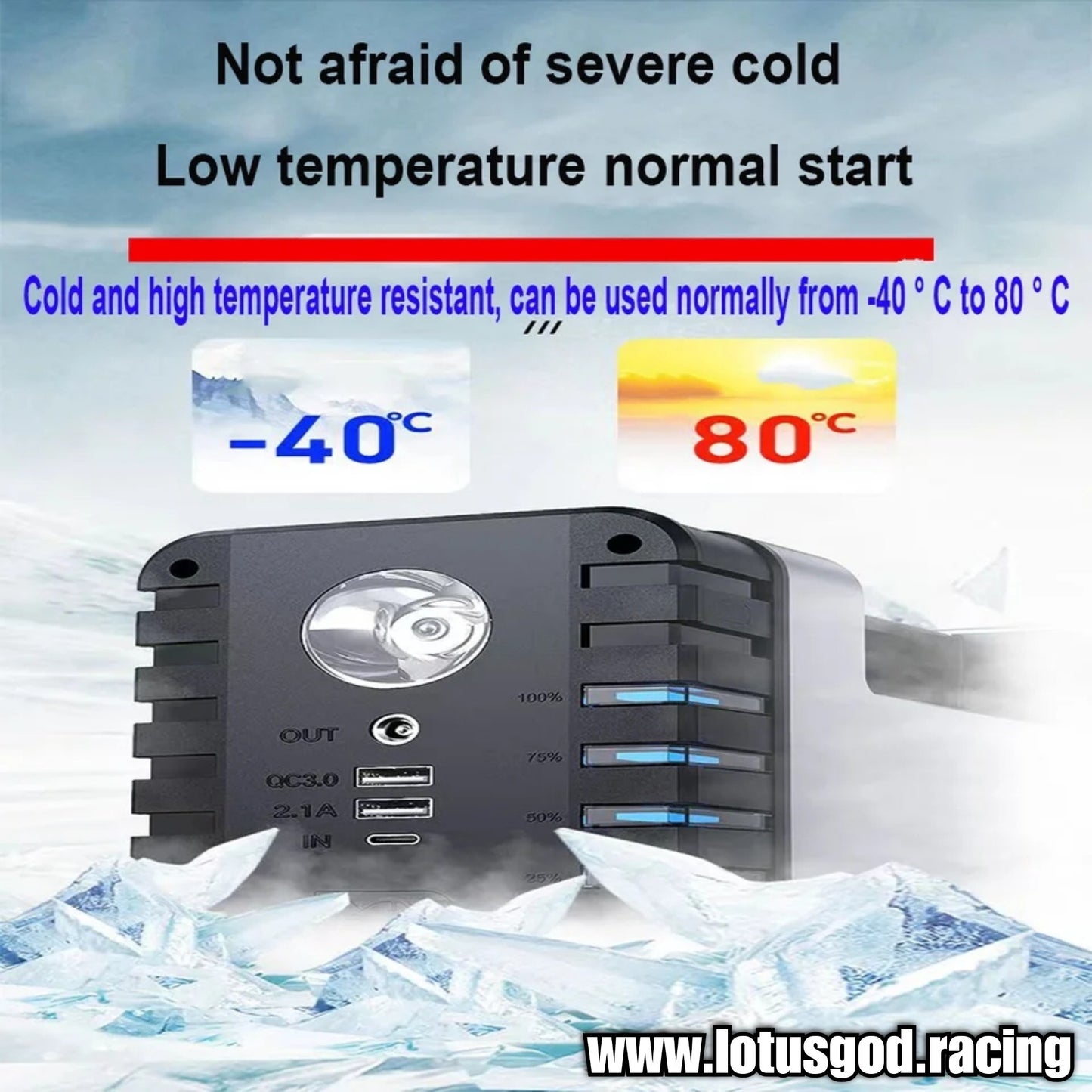

Working temperature: -20C-65C



Package Includes :

1 X New Black Case

1 X New Big 24v Battery

1 X New Pair of Jump Start Cables

1 X New 3 in 1 Type C Micro USB Apple Cable

1 X New Chinese Instructions Menu - Please see descriptions for english instructions
