72 Pieces 0.5A - 30A | 100 Pieces 0.2A - 20A Round Cartridge Fast Glass Fuses Glass Tube Box Kit For Car Cigarette Socket Lighter Switch Plug Light Pump Inflator Vacuum Cleaner Etc

72 Pieces 0.5A - 30A | 100 Pieces 0.2A - 20A Round Catridge Fast Glass Fuses Glass Tube Box Kit For Car Cigarette Socket Lighter Switch Plug Light Pump Inflator Vacuum Cleaner Etc

Features :

Suitable for vehicle electronics, household appliances, car instruments, toys etc

This glass cartridge fuse is ideal for providing protection to devices or internal circuits. They are deliberately weaker components which, when too much current is drawn,it will blow.

Specifications :

Fuses & Circuit Breakers

Cartridge Fuses

Glass Cartridge Fuse, 5mm X 20mm | 6mm X  30mm

Glass cartridge

5 x 20 mm cartridge size

T Speed Rating

Anti-surge

Low Breaking Capacity

Why choose a glass fuse?

Glass and ceramic fuses have similar properties. However you may choose a glass fuse as it enables you to see the inside of the fuse. Therefore it is easier to determine whether the fuse has blown.

What size is it?

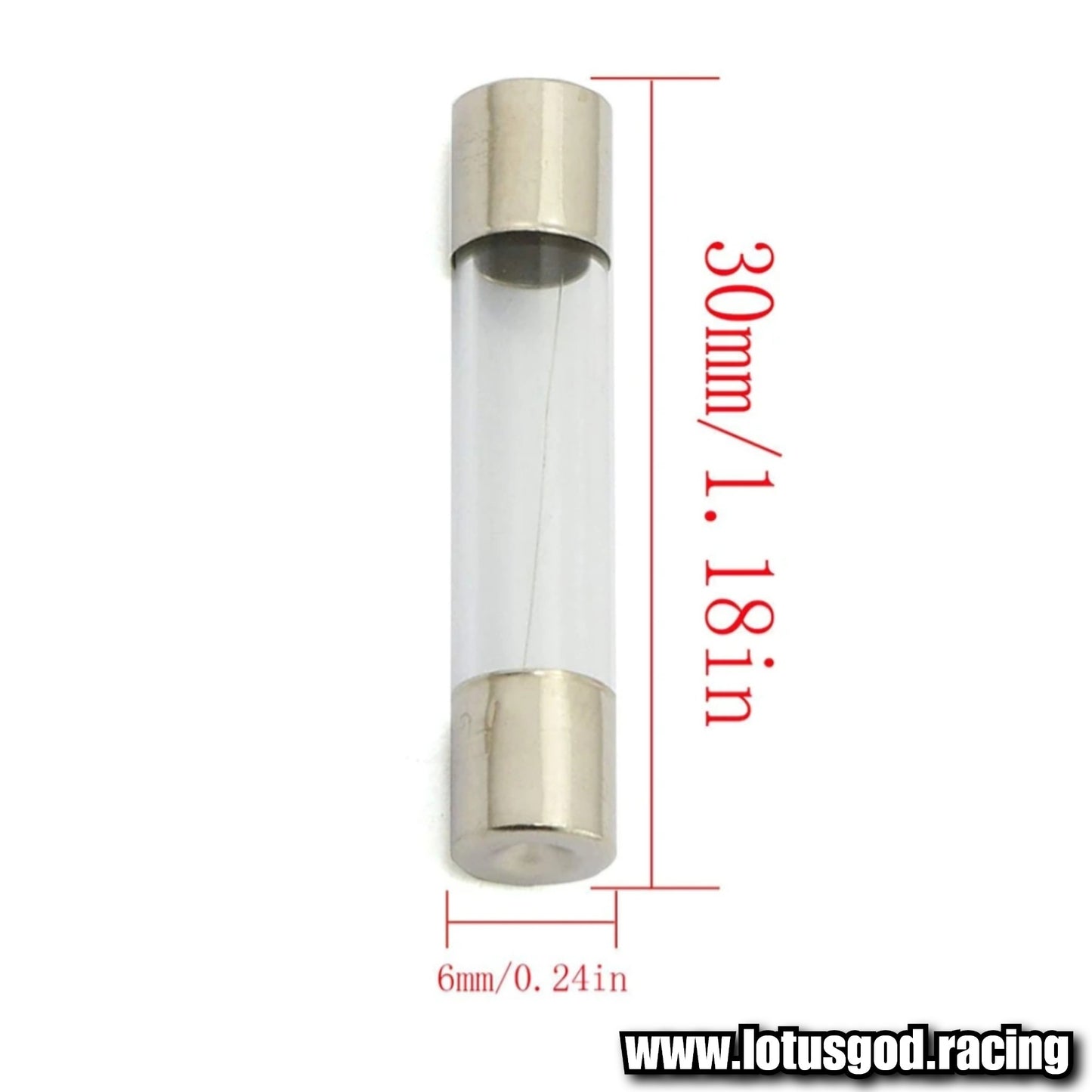

5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter or 6x30mm size. They are popular in board and panel protection and will fit a compatible 5x20 or 6x30 fuse holder.

What Speed is it?

This particular fuse is “T” speed rated which means it is a slow acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular fuse is LBC (Low Breaking Capacity)

🌟 72 Pieces Set

0.5-30A set: (6x30mm)

0.5A---8pcs

1A---8pcs

2A---8pcs

3A---8pcs

5A---8pcs

10A---8pcs

15A---8pcs

20A---8pcs

30A---8pcs

6mm X 30mm fuse clips---10pcs

🌟 100 Pieces Set

0.2-20A set:(5x20mm)

0.2A---10pcs

0.5A---10pcs

1A---10pcs

2A---10pcs

3A---10pcs

5A---10pcs

8A---10pcs

10A---10pcs

15A---10pcs

20A---10pcs

Package Includes :

1 X New Selected Variant Box
