54400mah Universal Powerful 12 Volt - 24 Volts Diesel Petrol Car Truck Van Lorry Trailer Jump Start + Power Bank + Emergency Led Light Rechargeable Type C Battery Supply Starter

54400mah Universal Powerful 12 Volt - 24 Volts Diesel Petrol Car Truck Van Lorry Trailer Jump Start + Power Bank + Emergency Led Light Rechargeable Type C Battery Supply Starter



Product design concept :

Visual characteristics of appearance

Strong, beautiful, and modern



Functions :

12-24V diesel gasoline universal emergency starting power supply

Emergency lighting LED flashlight

Portable power bank, large capacity

12 V - 24 V startup power supply

54400 mah super high-end version

Real parameter advantages

12-24V starting power battery: (7+4=11 series batteries) Independent battery

1. 35000mAh+8400mAh=43400mAh (low configuration mainly for personal use)

2. 42000mah+12400mah=54400mAh (for high-end rescue use)



1. Lastest technology 11 series of high magnification A-grade explosion-proof cells, with real cell capacity and no false labeling. The main products on the market are 7 series cells, and our product has 11 series cells.

Advantages of using 11 series battery cells: Consumers are less likely to damage the product's battery cells during use. Using 7 series battery cells can easily cause the battery to be pulled, bulged, or discharged, leading to increased after-sales service

2. The product is equipped with 4 relay protection circuits, which provide overcharge, over discharge, and short circuit protection

The product uses mainstream Type-C 30W interface input, and most products on the market use DC interface charging, with a single interface



Product Professional Features :

Chip

Main control chip: Zhongwei (CMS32F033QN32) battery voltage regulator chip Yingjixin (IP6536)



Batteries

High magnification A-grade pure ternary polymer cells (6570140/586888)

Battery clamp

EC8 battery clamp

Structural craftsmanship

ABS + PC shell

Upper and lower shells

Material and craftsmanship

Surface sprayed with gray metallic paint, with a matte texture

High magnification A grade poly pure ternary composite battery/Built in overcurrent, overvoltage, anti reverse connection, short circuit protection/LCD large screen, 11 independent battery cells, 12-24V automotive universal

Rugged and beautiful design elements

High grade and sophisticated gray metallic paint texture



Specifications :

12-24V LD startup power supply

54400mAh（Grade A类）

Battery capacity

8990000、12980000、17980000、19980000、21980000 (Virtual label Class B)

600A/1500A 900A/1800A

Peak current

3000/4000/5000/8000/9000A

3/10000

(Virtual label)

10w/18w/30w

Charging port power

10w/18w

7-8 hours

Charging duration

8-10 hours

Unlimited displacement

Diesel engine displacement

Unlimited displacement

EC8 large clamp

Battery clamp

Ordinary battery clip or diode battery clip

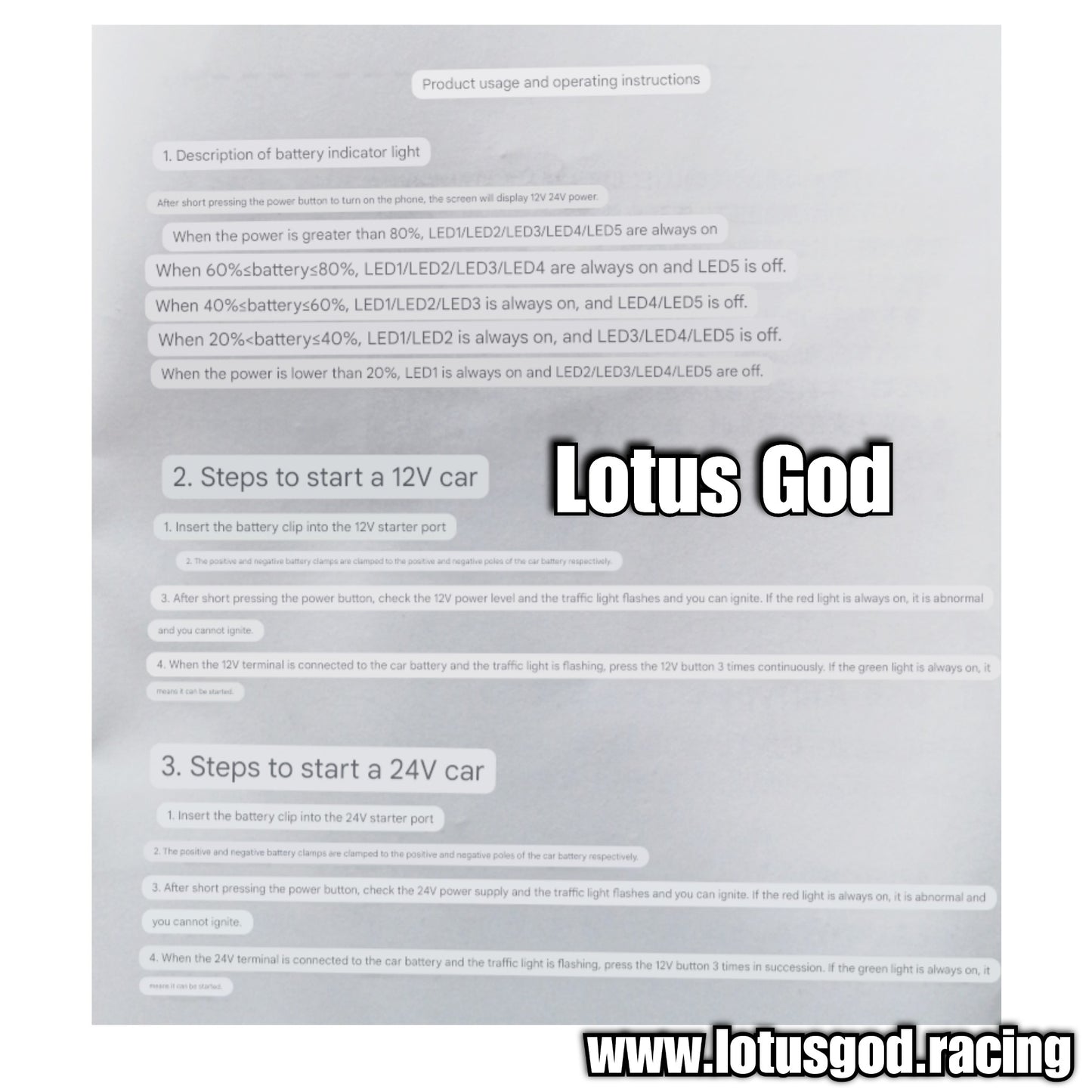

Explanation of battery indicator light

Short press the power button to turn on the device, and the screen will display 12V 24V

When the battery level is greater than 80%, LED1/LED2/LED3/LED4/LED5 remains on

When 60% ≤ battery level<80%, LED1/LED2/LED3/LED4 stays on and LED5 goes off

When 40%<battery level<60%, LED1/LED2/LED3 stays on and LED4/LED5 goes off

When 20%<battery level<40%, LED1/LED2 will remain on and LED3/LED4/LED5 will be off

When the battery level is below 20%, LED1 remains on and LED2/LED3/LED4/LED5 goes off



Instruction steps for starting a 12V car

1. Insert the battery clamp into the 12V starting port

Two battery clamps are placed on the positive and negative terminals of the car battery, respectively

3. After short pressing the power button, check the 12V battery level and the red and green lights will flash to ignite. If the red light remains on, it indicates an abnormal inability to ignite.

When the red and green lights are flashing after a 4 secs for 12V battery level, you can quickly double-click the 12V button. After the green light stays on, the ignition can be started



Instruction steps for starting a 24V car

1. Insert the battery clamp into the 24V starting port

2. Clamp the positive and negative terminals of the battery onto the positive and negative terminals of the car battery, respectively

3. After short pressing the power button and checking the 24V battery level, the red and green lights will flash to ignite. If the red light remains on, it is considered abnormal and not ignitable

When the red and green lights are flashing after a 4 secs, 24V battery level, you can quickly double-click the 24V button. After the green light stays on, the ignition can be started

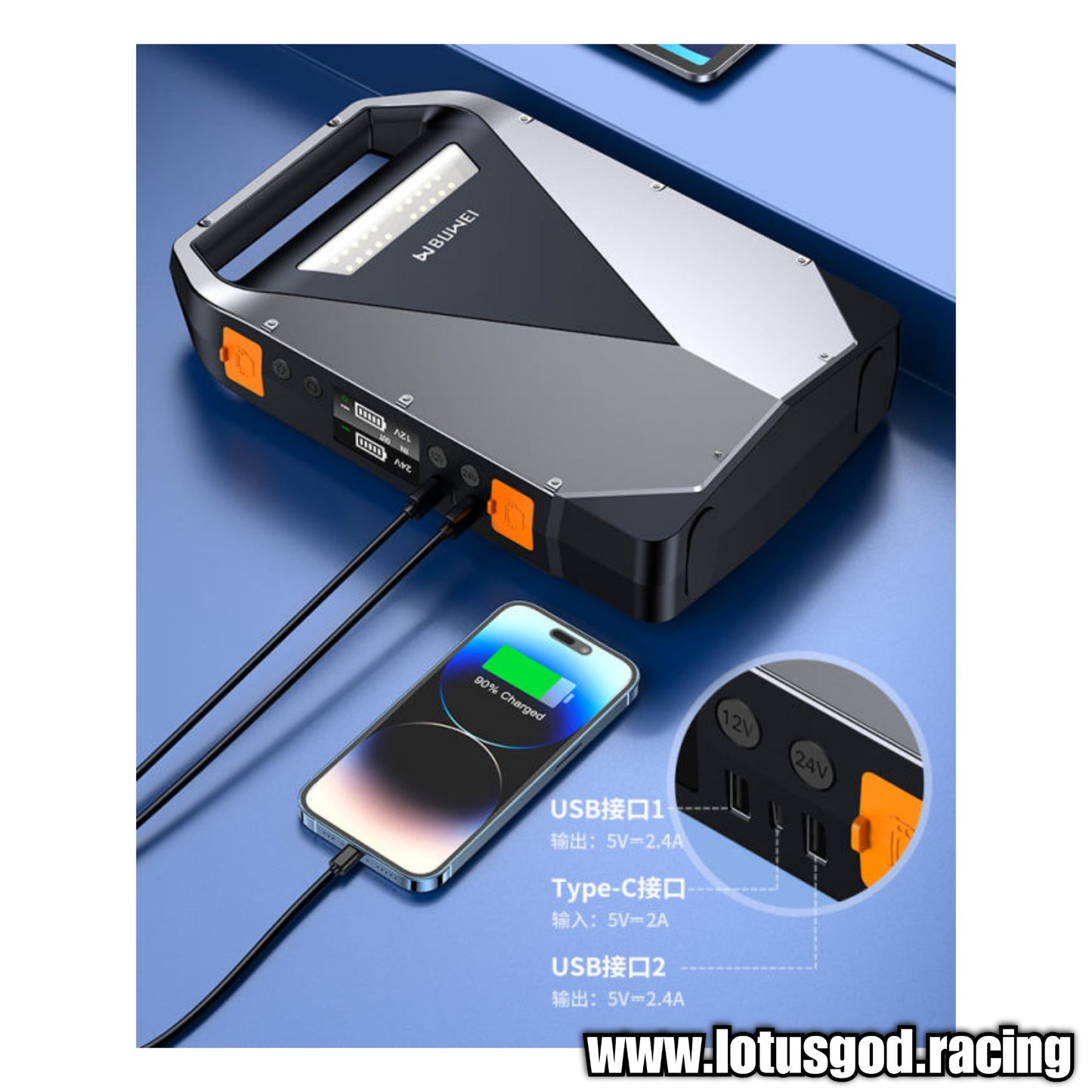

USB-A and Type-C charging modes

2. Short press the power button to turn on the device, insert the USB port into the load, and the OUT icon on the screen will light up

3. After the Type-C port is connected to the charging cable, the IN icon on the screen flashes during charging, and the fully charged IN remains on



Lighting function

After short pressing the power button to turn on, long press the light button to enter the lighting mode. Short press the light again to switch lighting modes: SOS, flash mode

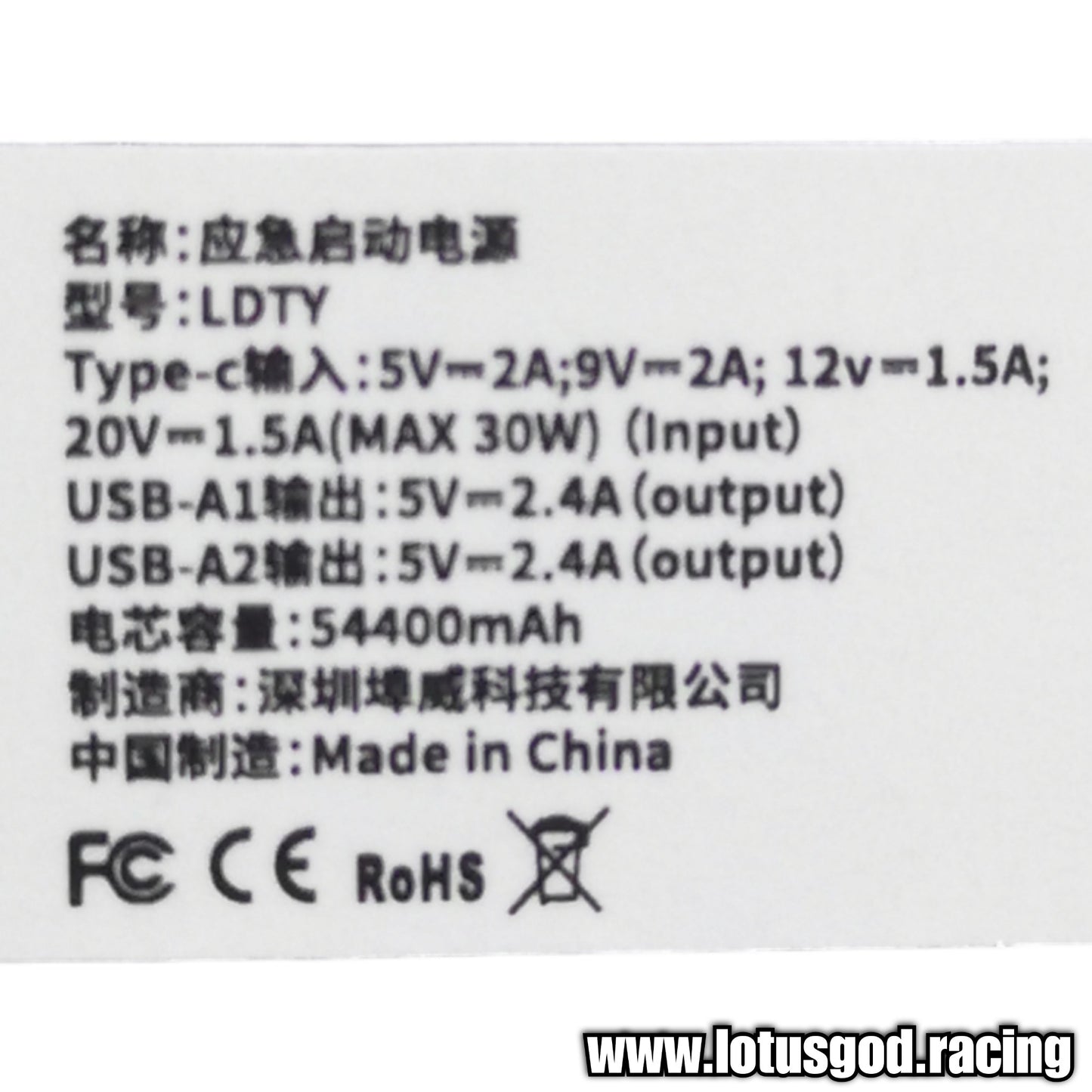

Product specifications

Product model: LD12-24V

Output USB 1: 5V=24A

Output USB2: 5V=2.4A

Input: Type-c 5V=2A; 9V 2A; 12v=1.5A; 20V=1.5A (MAX 30W)

Charging time: approximately 7-8 hours

Product size: approximately 333mm X 214mm X  86.5mm

Working temperature: -20C-65C

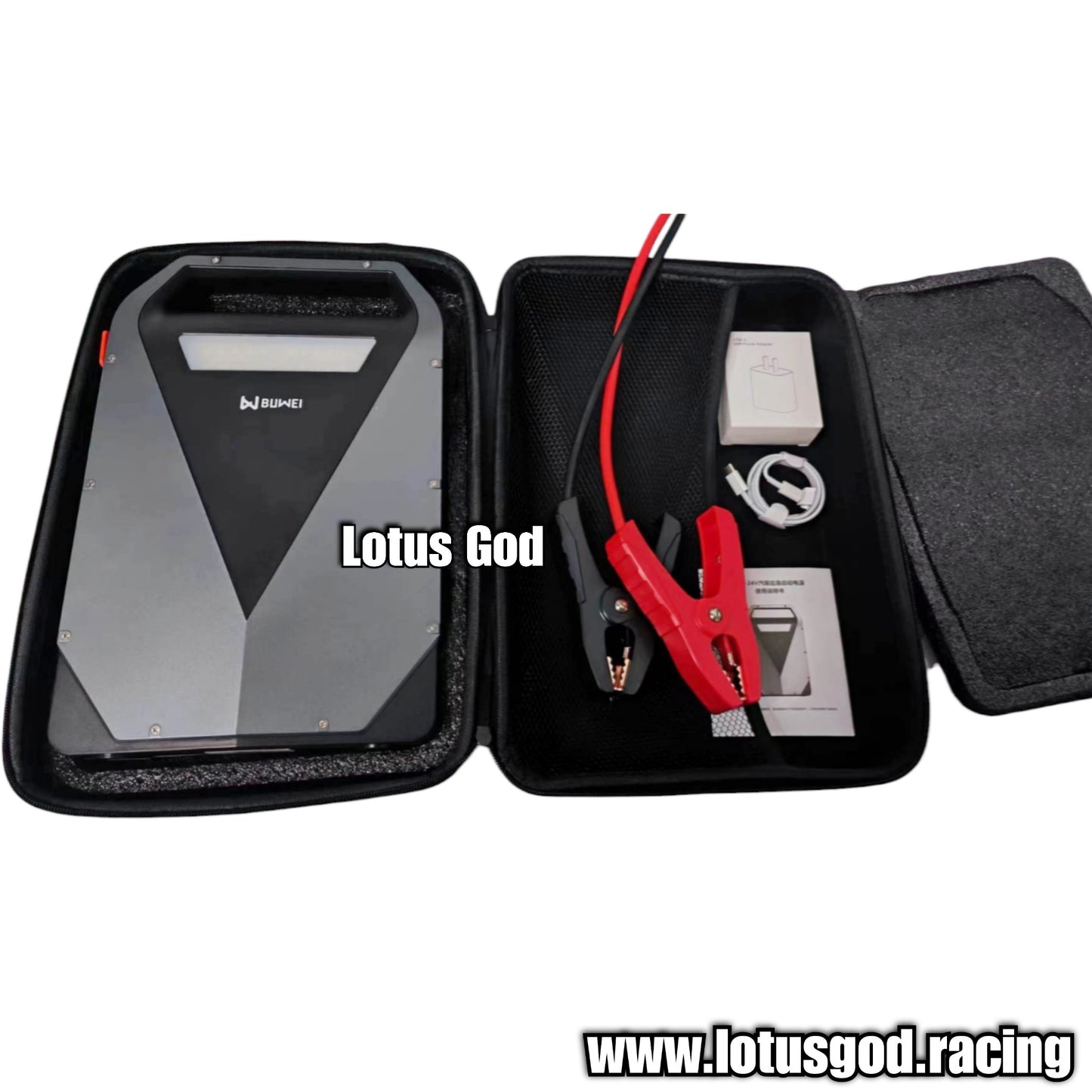

Package Includes :

1 X New Black Case

1 X New Big Battery LDTY54

1 X New Pair of Jump Start Cables

1 X New Type C Cable

1 X New Type C Us Plug Charger

1 X New Chinese Instructions Menu - Please see descriptions for english instructions
