16 Pin Wire OBD 2 Engine Check Light 02 Sensor Interface Scanner Plug And Play To Read Delete Clear & Read Codes Tester OBDII Dignostic Tool For Cars Etc

16 Pin Wire OBD 2 Engine Check Light 02 Sensor Interface Scanner Plug And Play To Read Delete Clear & Read Codes Tester OBDII Dignostic Tool For Cars Etc

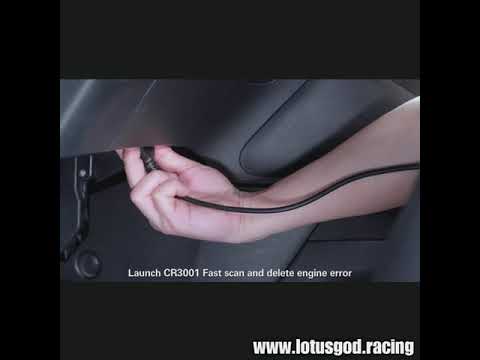

⚠️ Note 🌟 To better understand this product, reference the last picture for a video demonstration



Features :

Parts might cause your check engine light on Includes :

1. Gas Cap

2. Oxygen Sensor

3. Air Fuel Ratio Sensor

4. Mass Air Flow Sensor

5. Ignition Coils

6. Spark Plug Wires

7. Spark Plugs

8. Thermostat

9. EGR Valve

10. Evaporatative Emission Canister Purge Valve (EVAP)

11. Catalytic Converter



If the engine light is not turned off in time it will Cause Serious environmental pollution , Increased fuel consumption,Increased engine noise.Increased in temperature , etc



Why choose LAUNCH X431 CR3001 Scanner for your car?

1. Small compact design, scan faster and indicates test results directly. Even a beginner can use this unit to analyze any OBD2 protocols Vehicles, and tells you everything about Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status,Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance,Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages,associated short term fuel trims,Fuel System status, Fuel Pressure, etc



2. Compared with other competitors, LAUNCH CR3001 covers more models, support up to 2024 year, including SUVs, minivans, light-duty trucks, etc

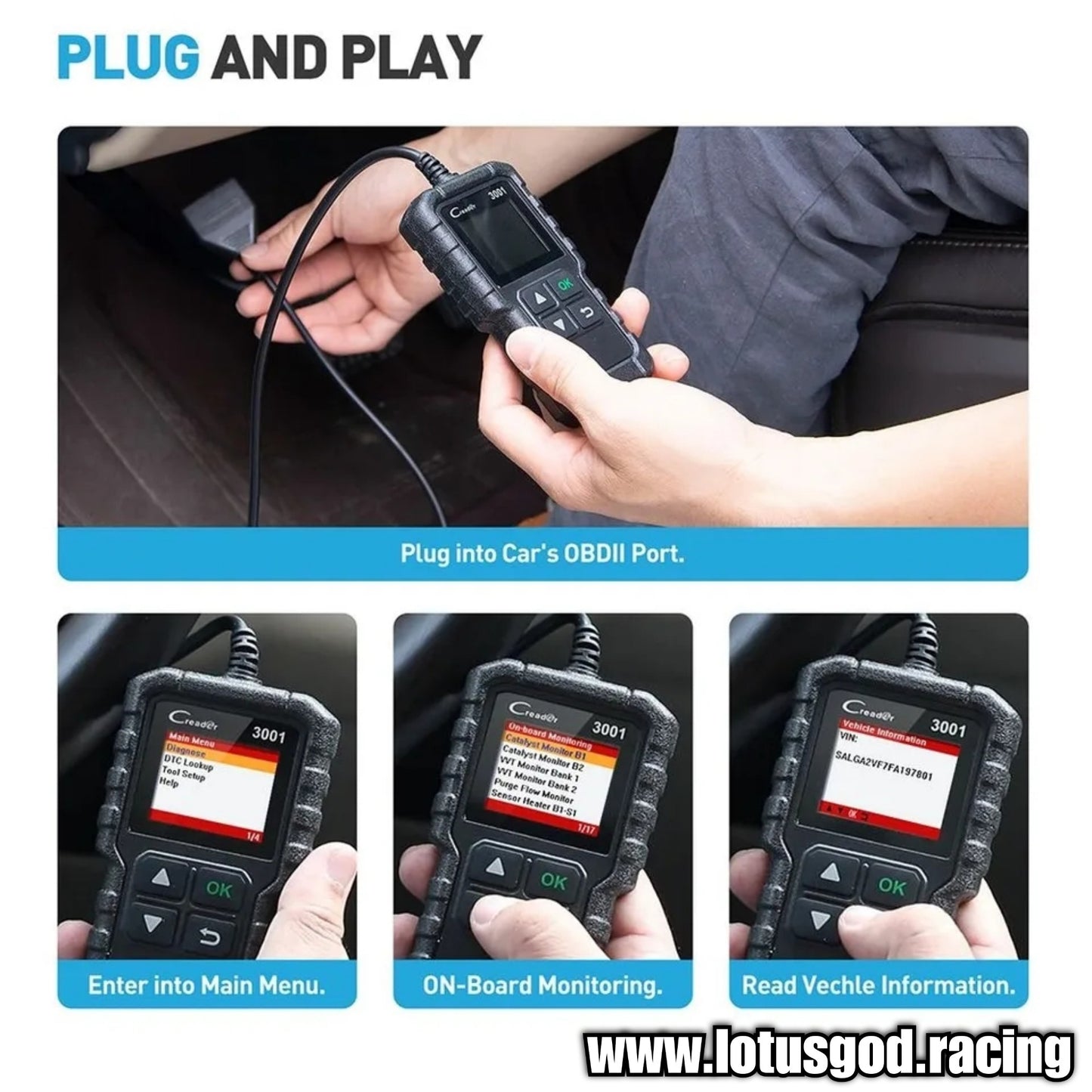

3.The LAUNCH CR3001 Scanner is well built with a large LCD display, Plug and play, without a built-in battery, and get power directly from powered by the diagnosis socket in Obd2



4. It's equipped with cable, there are 4 buttons on CR3001, The up/down button for scrolling the menu. The OK and Return button allow for navigation back and entering menu.



5. Multi-language design and free online upgrade，LAUNCH CR3001 can set the language to English, French, Russian, Spanish, German, Italian ,Portuguese with one key, Get the upgrade tool on LAUNCH official website, Solve language barriers ,keep CR3001 software up to date and solve more bug



LAUNCH CR3001 Support OBD2 protocols car :

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud

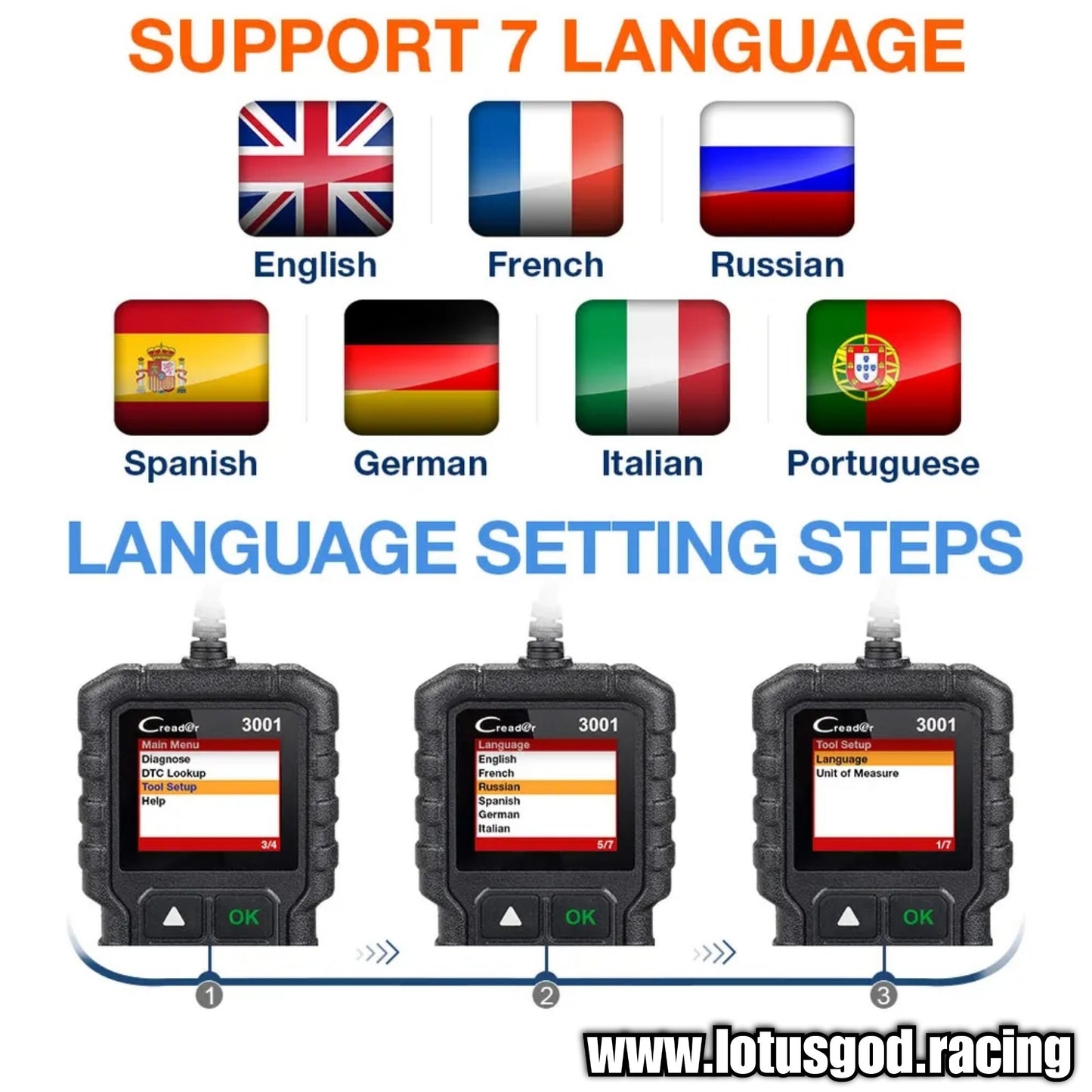

Multi-Language supported

The CR3001 operating system can quickly be changed into English, French, Russian, Spanish, German, Italian and Portuguese

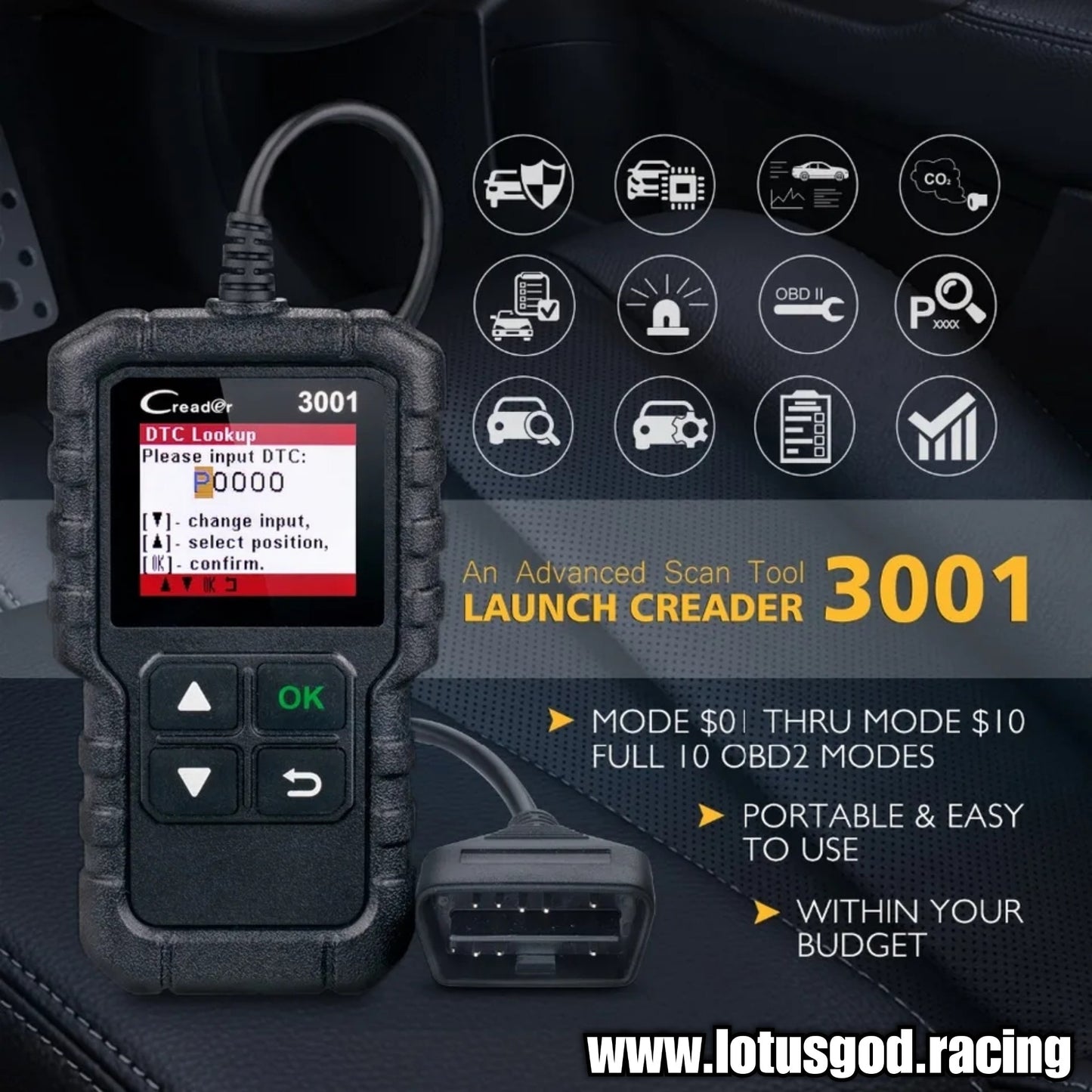

LAUNCH CR3001 is a high-quality automotive scanner, supports all OBD-II protocols

1.SAE J1850 PWM (41.6K baud)

2. SAE J1850 VPW (10.4K baud)

3. ISO 9141-2 (5 baud init,10.4K baud)

4. ISO 14230-4 KWP (5 baud init,10.4 Kbaud)

5. ISO 14230-4 KWP (fast init,10.4 Kbaud)

6. ISO 15765-4 CAN (11bit ID,500 Kbaud)

7. ISO 15765-4 CAN (29bit ID,500 Kbaud)

8. ISO 15765-4 CAN (11bit ID,250 Kbaud)

9. ISO 15765-4 CAN (29bit ID,250 Kbaud)



Wide vehicle coverage

1.American Car list:

Need standard obd2 , and release year from 2000-now

Chrysler, Ford, GM, Jeep, Lincoln, Buick, Cadillac, Chevrolet, Dodge, HM, ect...



2.European car list:

Need standard obd2 , and release year from 2003-now

Mercedes Benz, Smart, Sprinter, BMW, Volkswagen, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Ford, Land Rover, Jaguar, Aston Martin, Bentley, Rolls-Royce, Rover, Mini, Vauxhall, DR, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Peugeot, Citroen, Renault, Saab, Volvo, GM, GMSA, Dacia ,Seat, etc



3. Russian car list:

New standard obd2 , and release year from 2012 -now

GAZ, VAZ, Lada, IZH, Paz, SeAZ, UAZ, ZAZ,etc



4. Japanese / Korean car list:

Need standard obd2 , and release year from 2006-now

Honda, Acura, Toyota, Scion, Lexus, Mazda, Nissan, Infiniti, Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, Samsung, Daewoo, Hyundai , Kia, etc



5. Chinese car list:

Need standard obd2 , and release year from 2009 -now

Great Wall, Huachen, Geely, DF Honda ,Lifan, etc

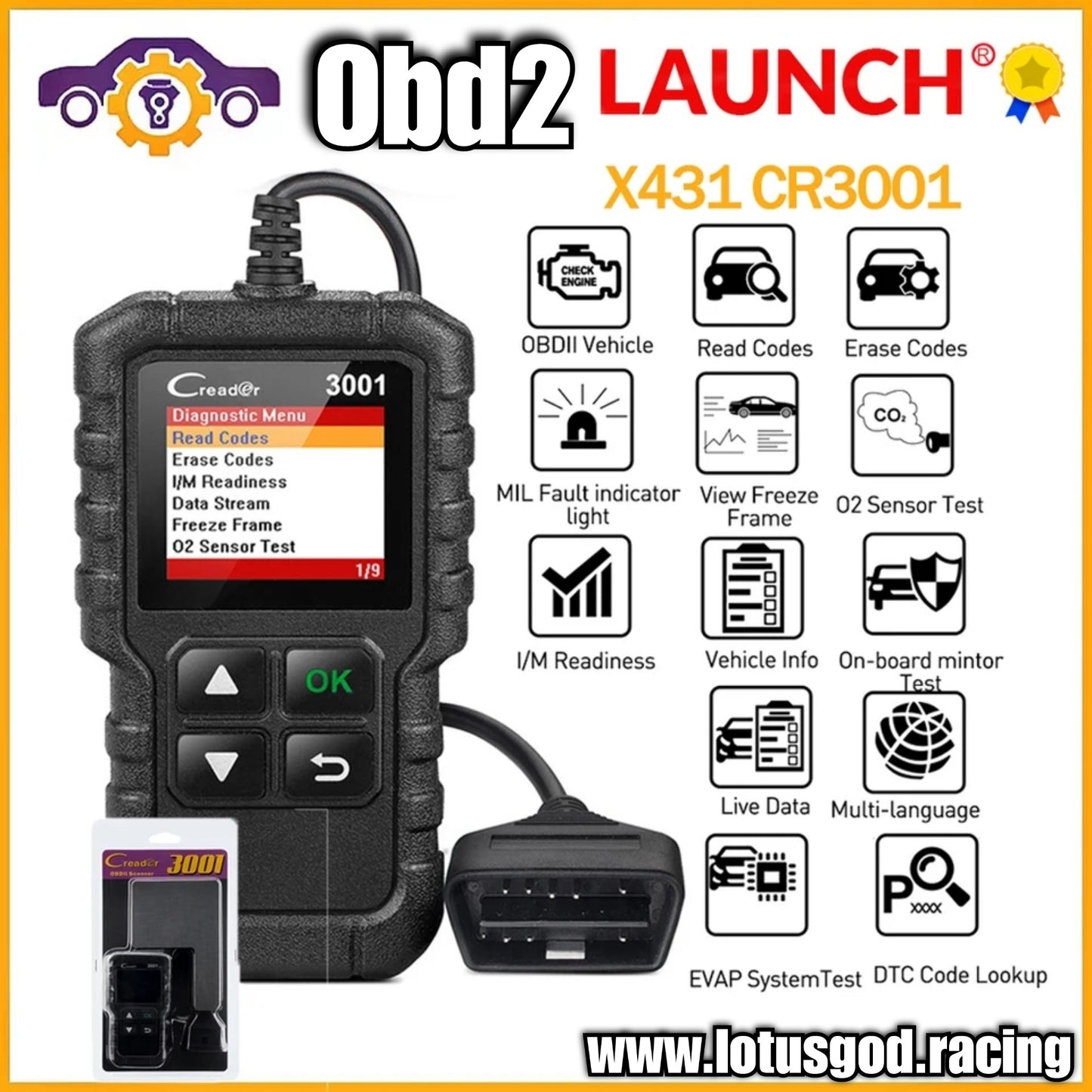

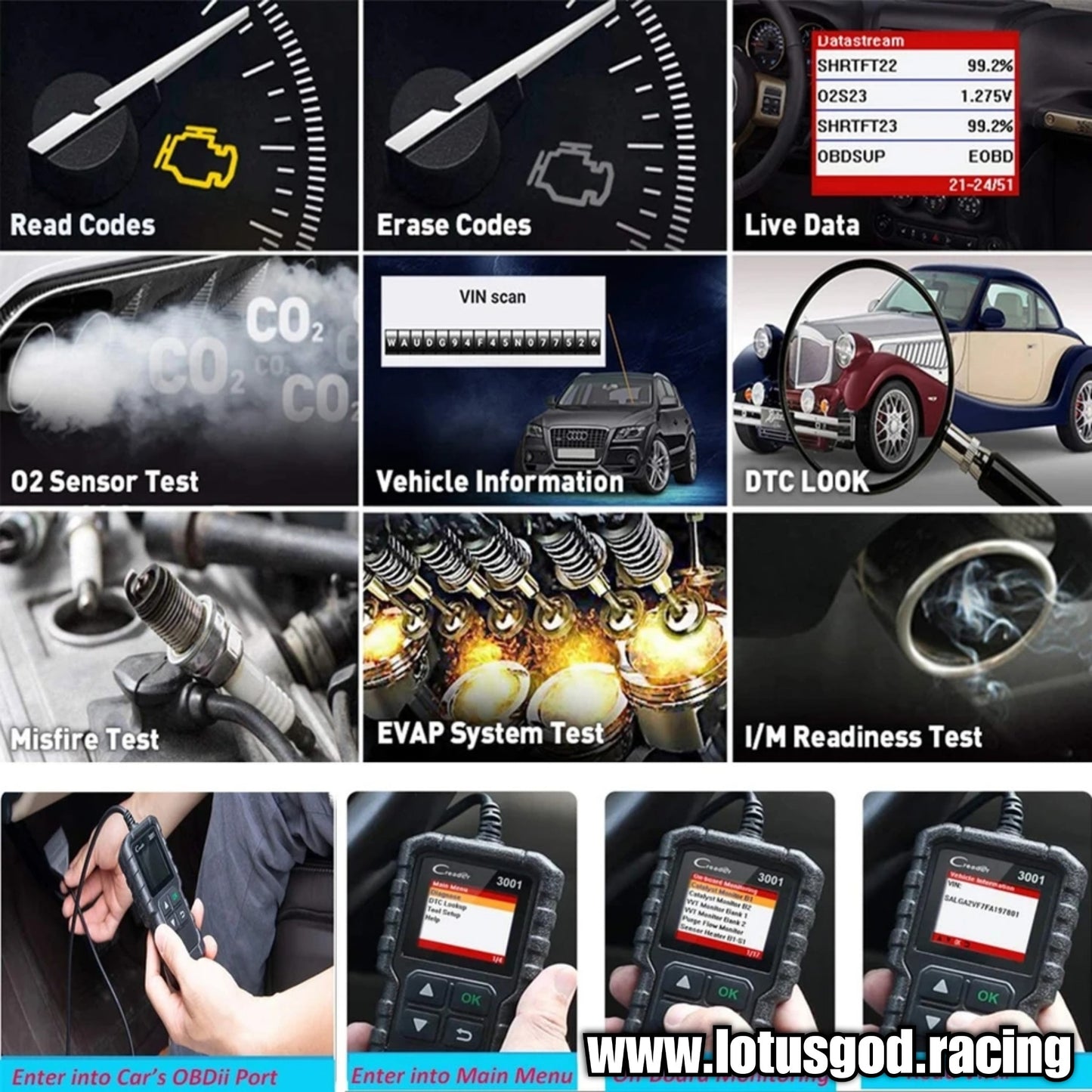

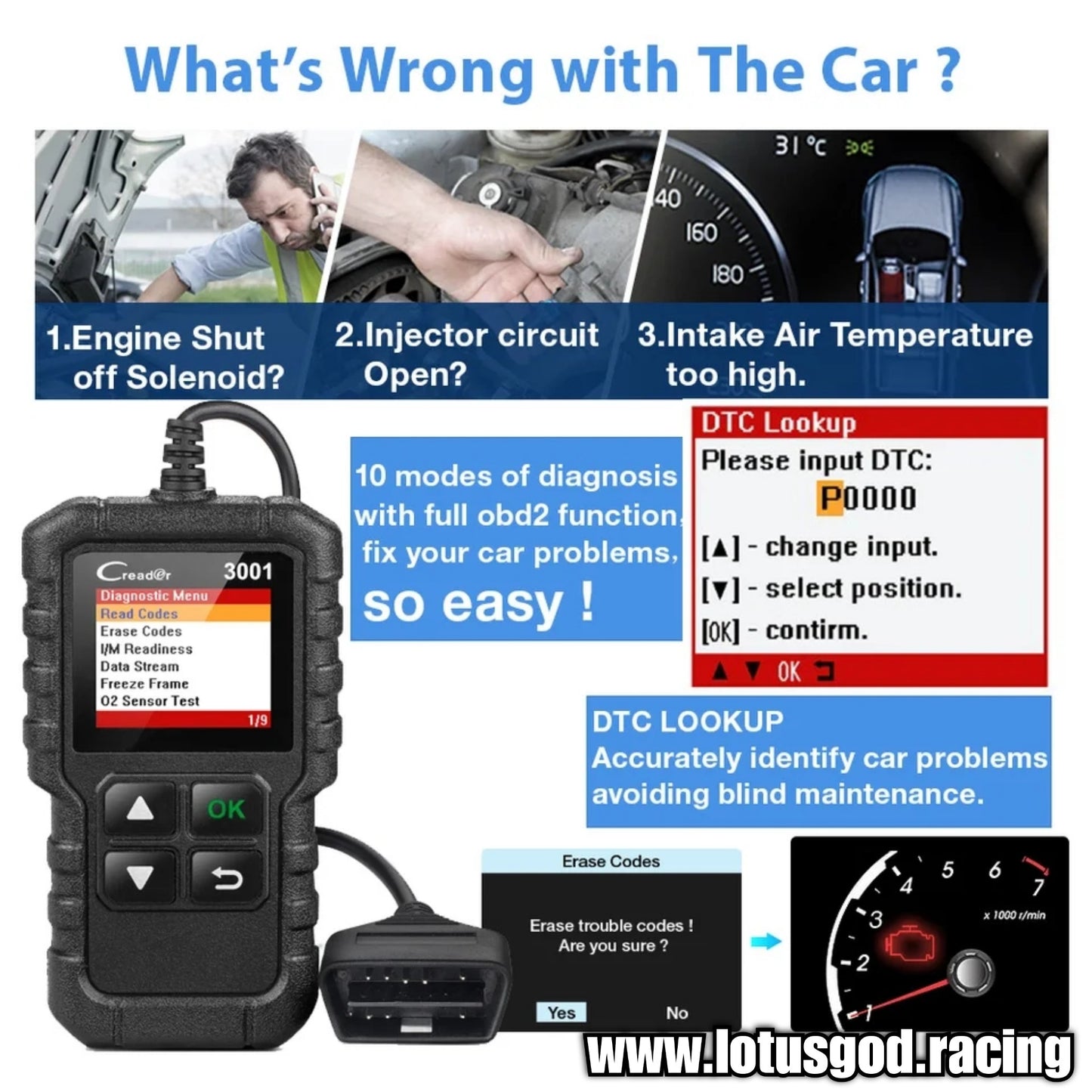

The full function of CR3001 (Support Full OBD2 functions, Engine Check including ) :

Read and erase fault codes

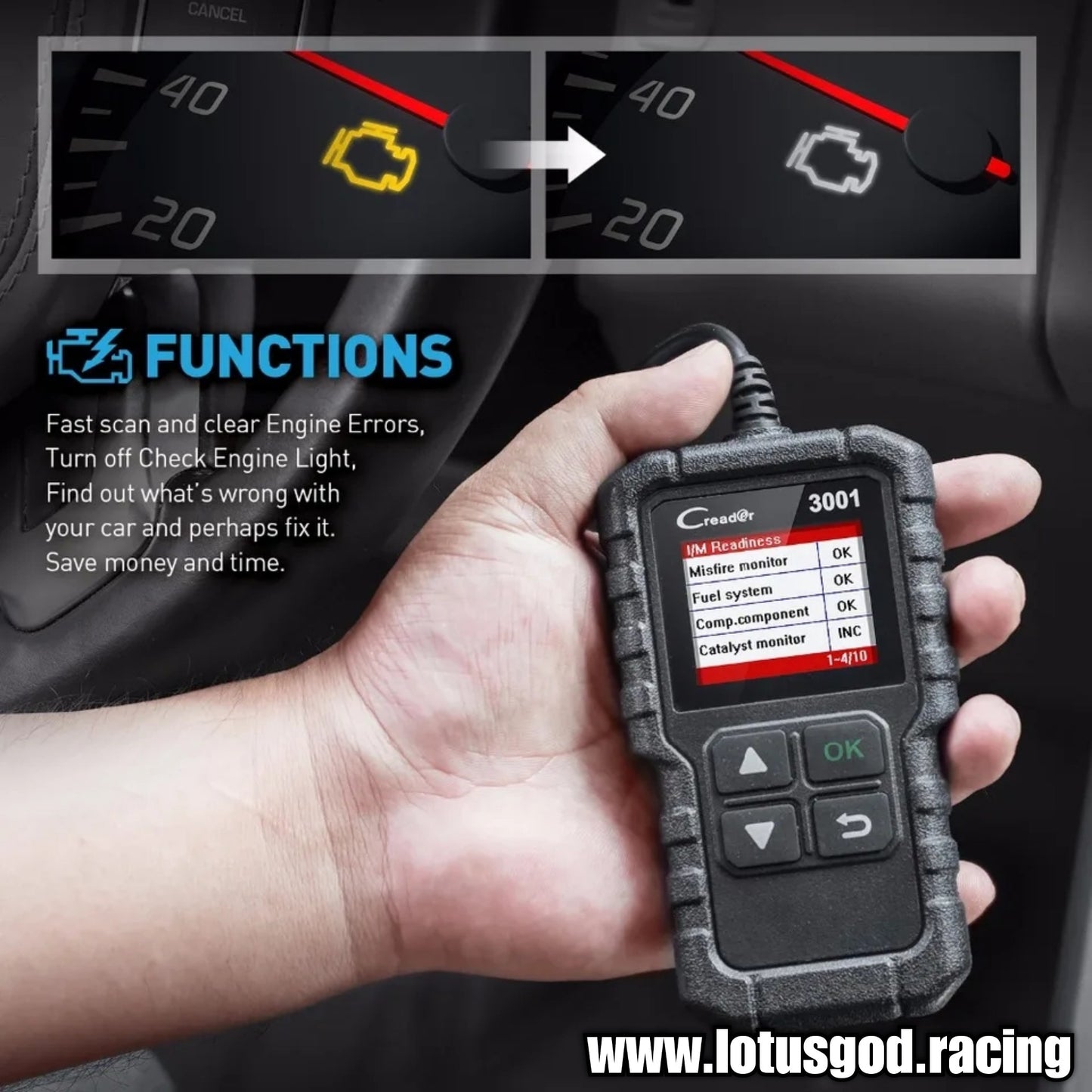

Read DTCs (Diagnostic Trouble Codes) to locate the issues,Clear DTCs to turn off the Check Engine Light after certain repairs



Live Data Viewing

Live data are displayed in a time-based chart to help customers to better analyze the abnormal parameter.This function will let you see engine performance information, if there are any trouble codes or issues with your engine or ECU.



Freeze Frame

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. It intended to provide you with a guide as to where a fault might be occurring within a vehicle.

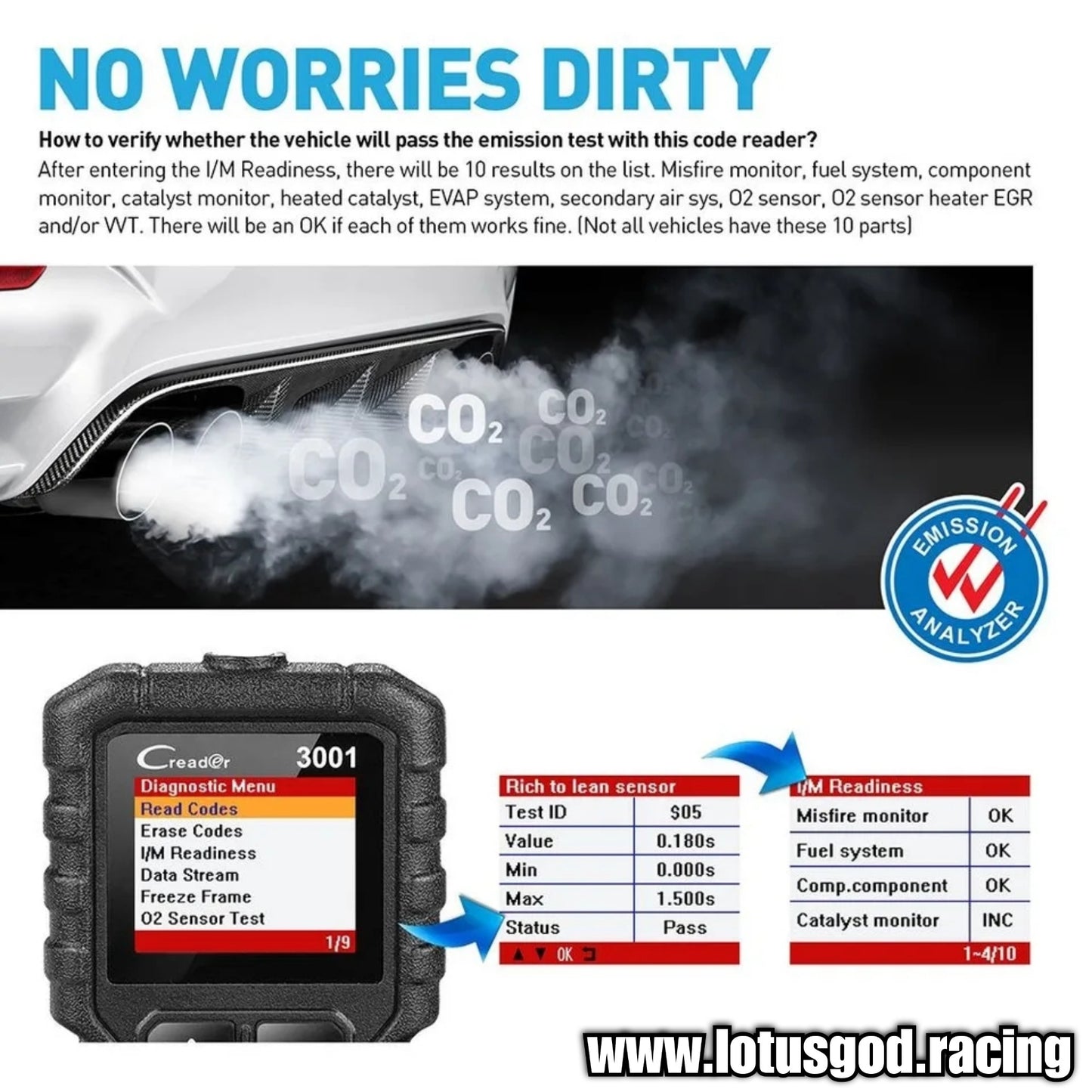

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.



O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.



On-Board Monitor Test

etrieves and displays test results for emission-related powertrain components and systems. Which is a way to find out if the engine has any misfire or compression problems on a particular cylinder, or other data that might indicate a problem but isn’t severe enough to trigger a check engine light.



Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.



Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability



Keep CR3001 as the latest version, free updates for life update website :

https://eninfo.x431.com/prod_view.aspx?TypeId=68&Id=263&FId=t3:68:3



How to Update Launch CR3001 :

Step 1 : Download update tool from launch offical website , then install in your computer .

Step 2 : Connect CR3001 with computer use USB cable , pls install the driver well !

Step 3 : open update tool to Update



Package Includes :

1 X New Launch Tech Europe OBD Wired Tool
