10V-30V DC Mini Inductive Proximity Sensor Switch | 3-Wire NPN Normally Open (NO) Automation 3D Printer Car Etc | TL-W3MC1 (1 Piece)

10V-30V DC Mini Inductive Proximity Sensor Switch | 3-Wire NPN Normally Open (NO) Automation 3D Printer Car Etc | TL-W3MC1 (1 Piece)

​Upgrade Your Automation Precision

​The TL-W3MC1 Mini Inductive Proximity Sensor is a compact, highly reliable non-contact switch designed for precise metal detection in automation, DIY projects, 3D printers, and industrial machinery. Featuring a flat, low-profile block design (27mm X  10mm X 6mm) it easily fits into tight spaces where standard cylindrical sensors cannot reach

​Equipped with a bright built-in red LED work indicator, this sensor provides immediate visual feedback on its operational status, making calibration and troubleshooting effortless

​Key Features

​Compact, Low-Profile Design: Ideal for space-constrained installations. Includes a pre-bored 3.2mm} mounting hole with a 6mm countersink for flush, secure installation

​Non-Contact Detection: Utilizes high-frequency electromagnetic induction to detect ferrous metals within a 0 to 3mm range without physical wear and tear

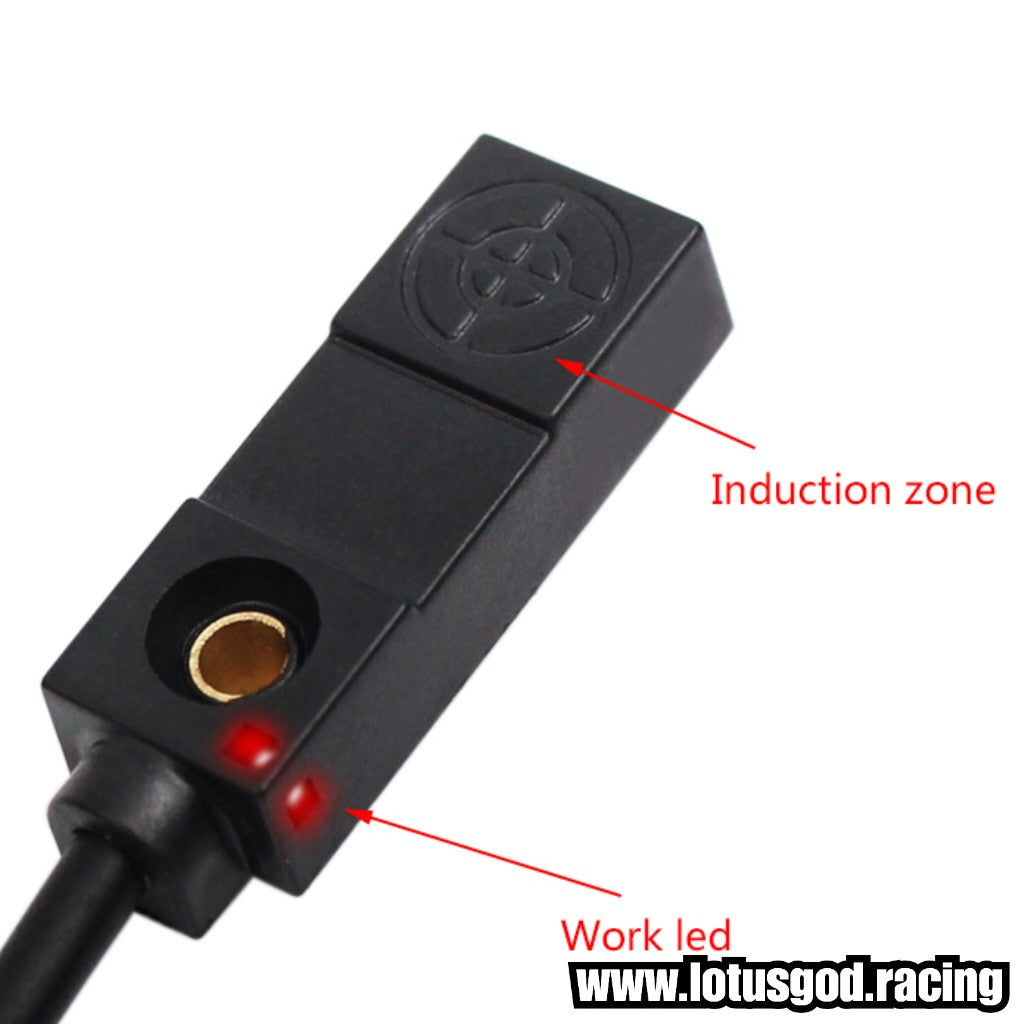

​Real-Time LED Indicator: Dual-angle visible red "Work LED" illuminates instantly when a target enters the induction zone

​Robust Weather Resistance: Built to handle demanding environments with a wide operating temperature range from -25°C to 75°C

​Technical Specifications

Parameter Specification

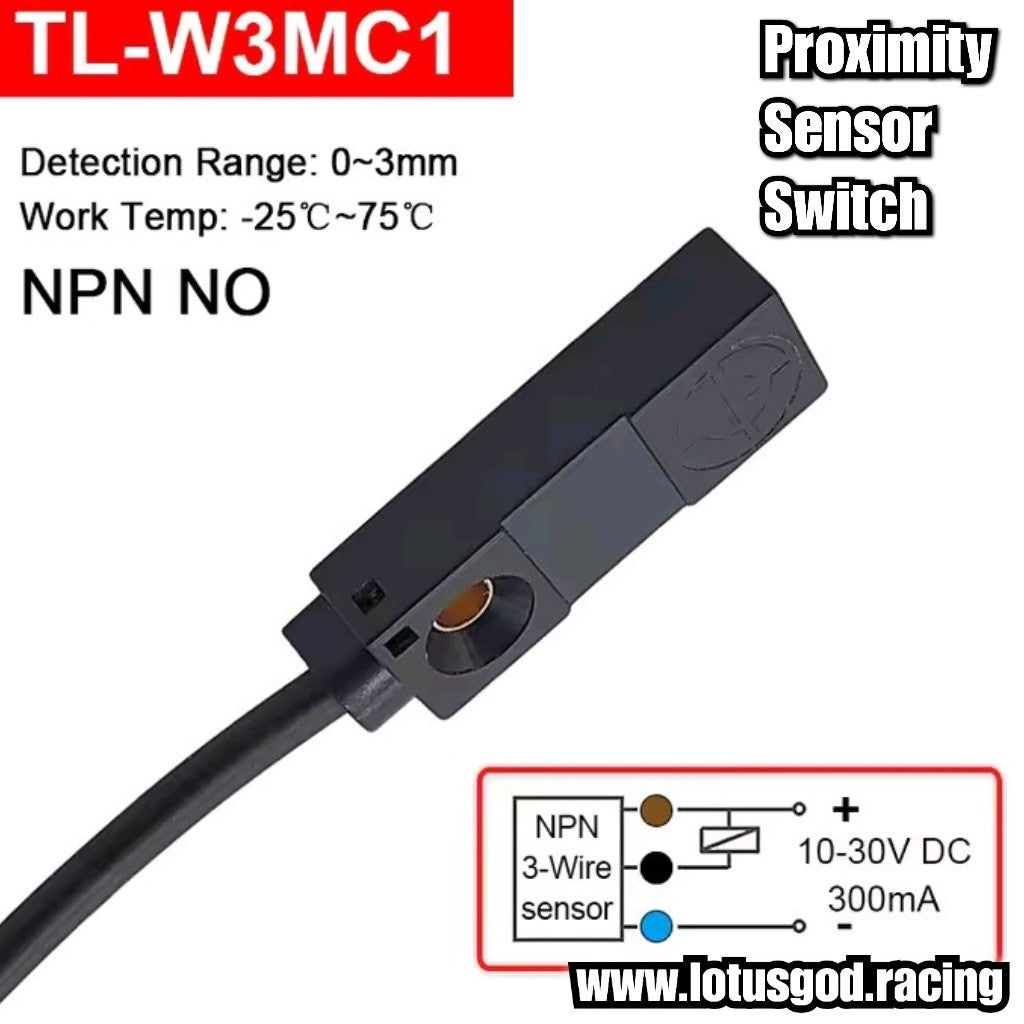

Model TL-W3MC1

Sensor Type Inductive Proximity (Metal Detection)

Output Type NPN / Normally Open (NO)

Detection Range 0 to 3mm

Supply Voltage 10–30V DC

Maximum Load Current 300mA

Operating Temperature -25°C to 75°C

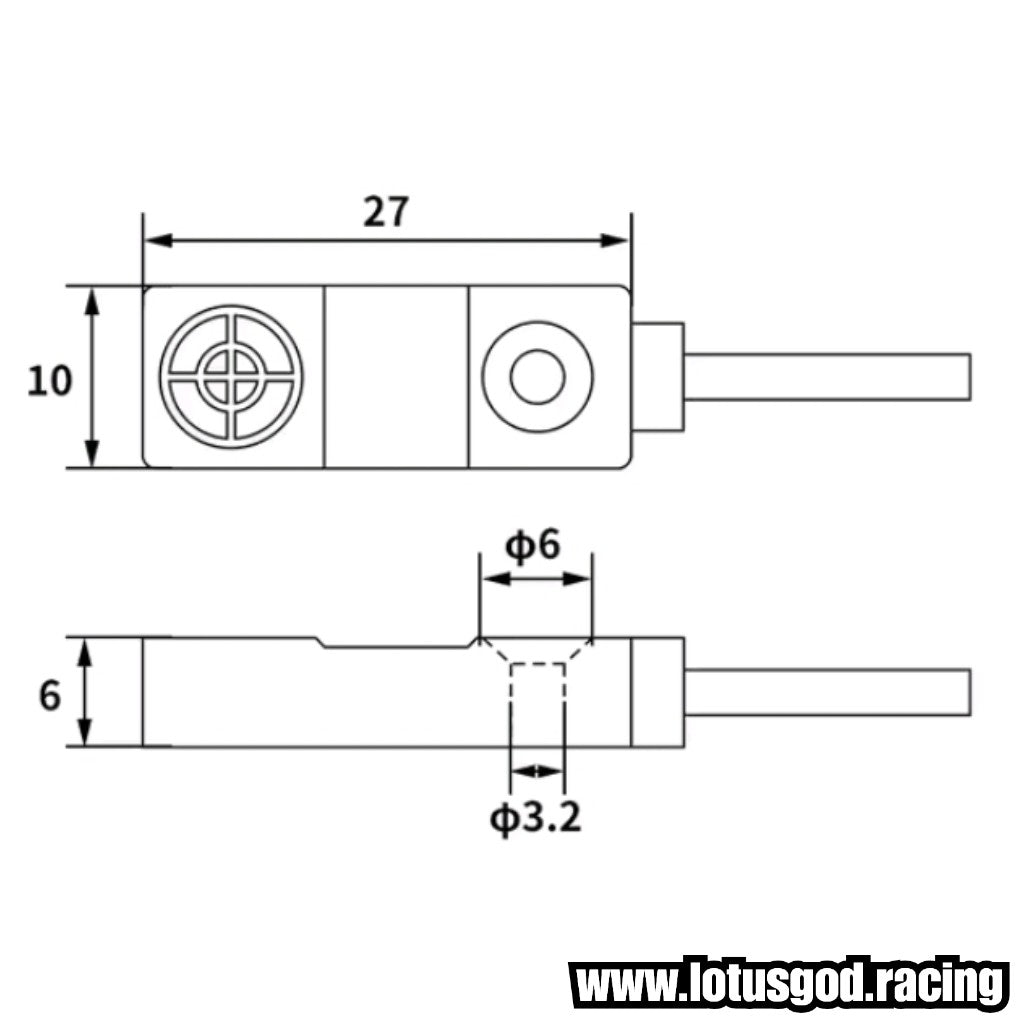

Dimensions 27mm} (L) x 10mm (W) x 6mm (H)

Mounting Hole \Phi 3.2mm (Inner) / \Phi 6mm (Counterbore)

3-Wire Wiring Guide

​Note: Ensure your power source is turned off before making connections to prevent accidental short circuits.

​Brown Wire: Connects to Positive Power (+) (10–30V DC)

​Blue Wire: Connects to Negative Power (- / GND)

​Black Wire: Signal Output (NPN Load/Signal to your controller)

Package Includes :

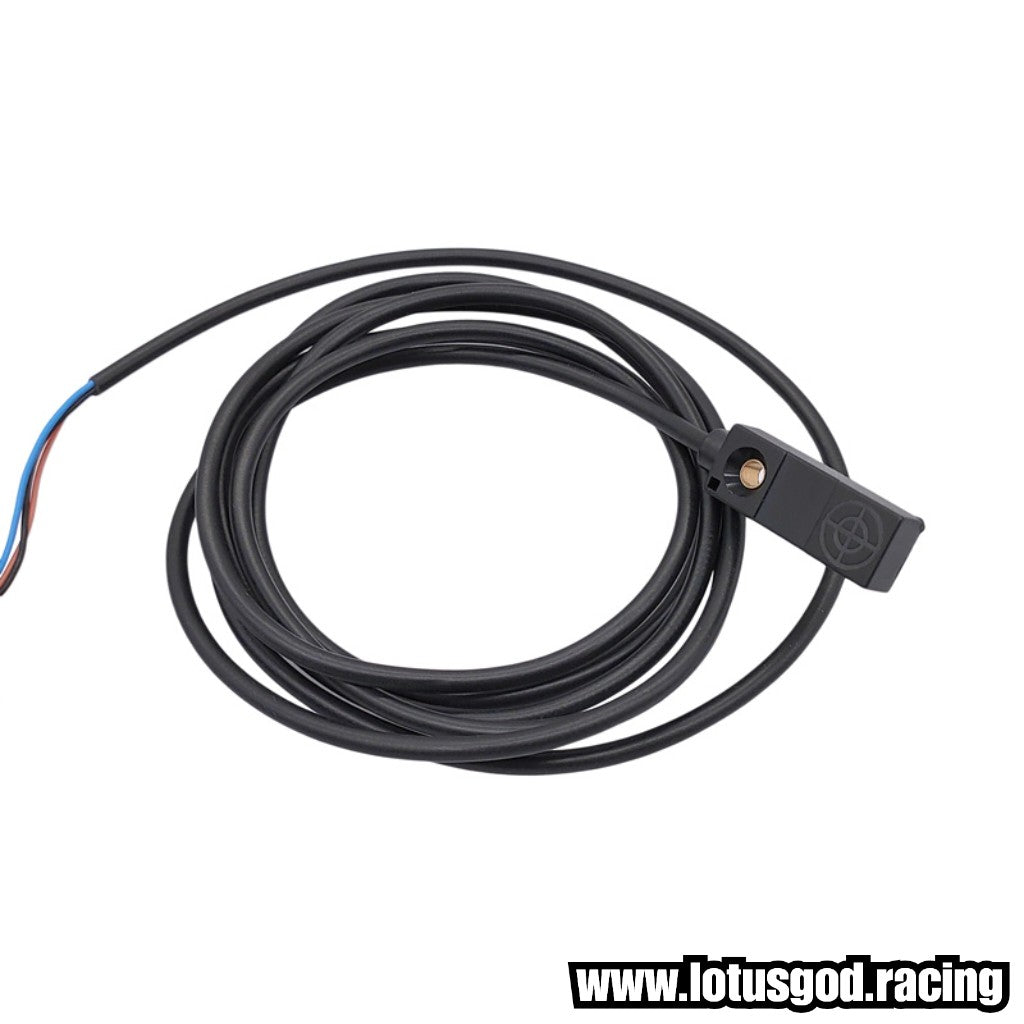

​1 X New TL-W3MC1 Inductive Proximity Sensor With Integrated Cable (1 Piece)
